The Warrior Winches JR Range is our industrial hydraulic winching solution, engineered for demanding commercial and heavy-duty applications where serious pulling power, durability and controlled operation are essential. Built to meet the SAE J706 standard, JR hydraulic winches combine compact installation with the strength required for demanding industrial recovery, towing, construction, forestry and other professional applications.
The JR 10 Tonne Industrial Hydraulic Winch delivers an impressive 22,000lb (10,000kg) rated line pull, powered by a Sauer Danfoss OMS 100 hydraulic motor and supported by a robust 39:1 planetary gear system. With 48 metres of 15mm steel rope, air-operated freespool and automatic hydraulic braking, it is designed to provide dependable pulling performance and precise control in demanding working environments.

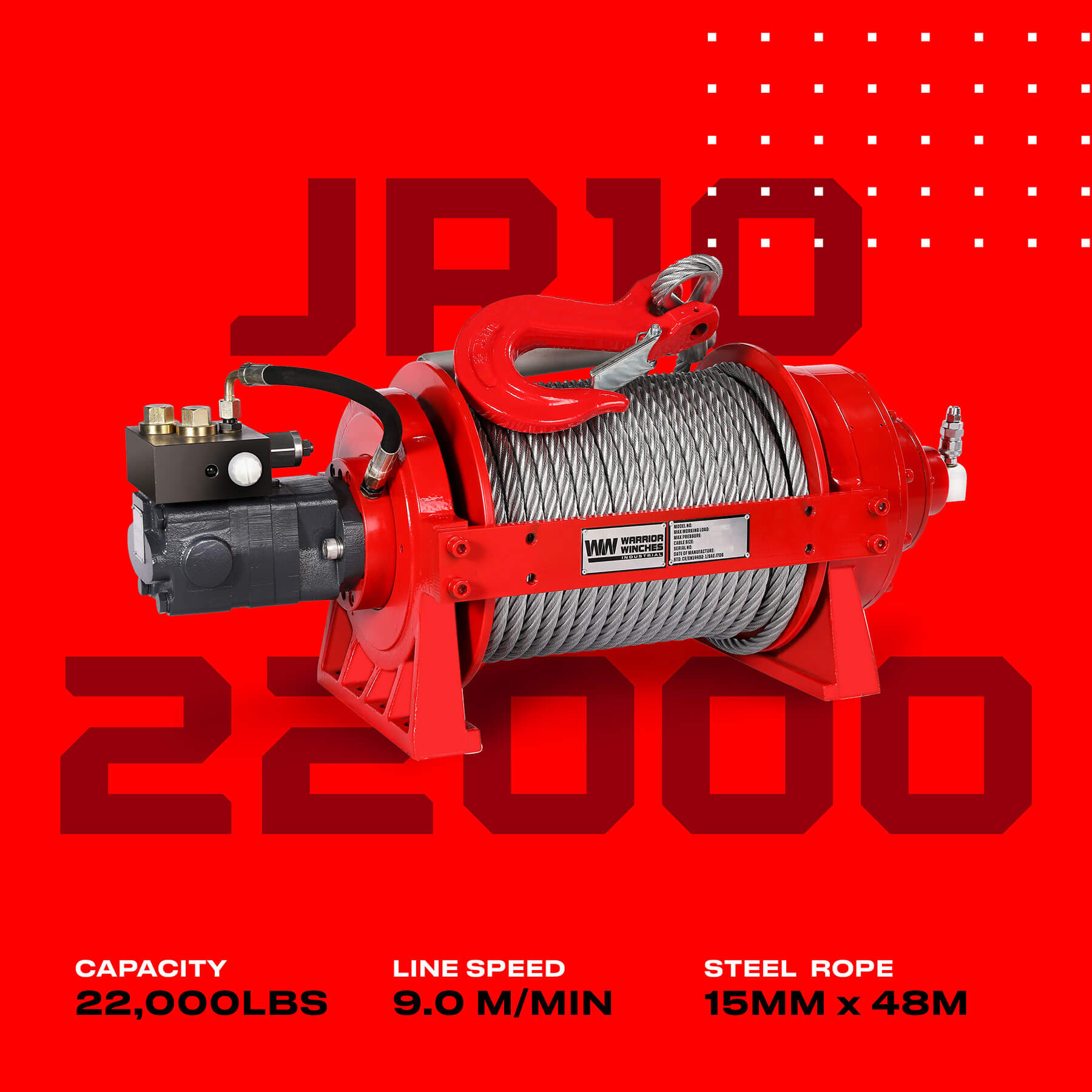

22,000lb of Industrial Pulling Power. With a rated line pull of 22,000lb (10,000kg), the JR 10 Tonne is built for heavy-duty applications where substantial pulling force is essential. It provides the capability required for demanding towing, recovery, forestry, construction and commercial winching operations.

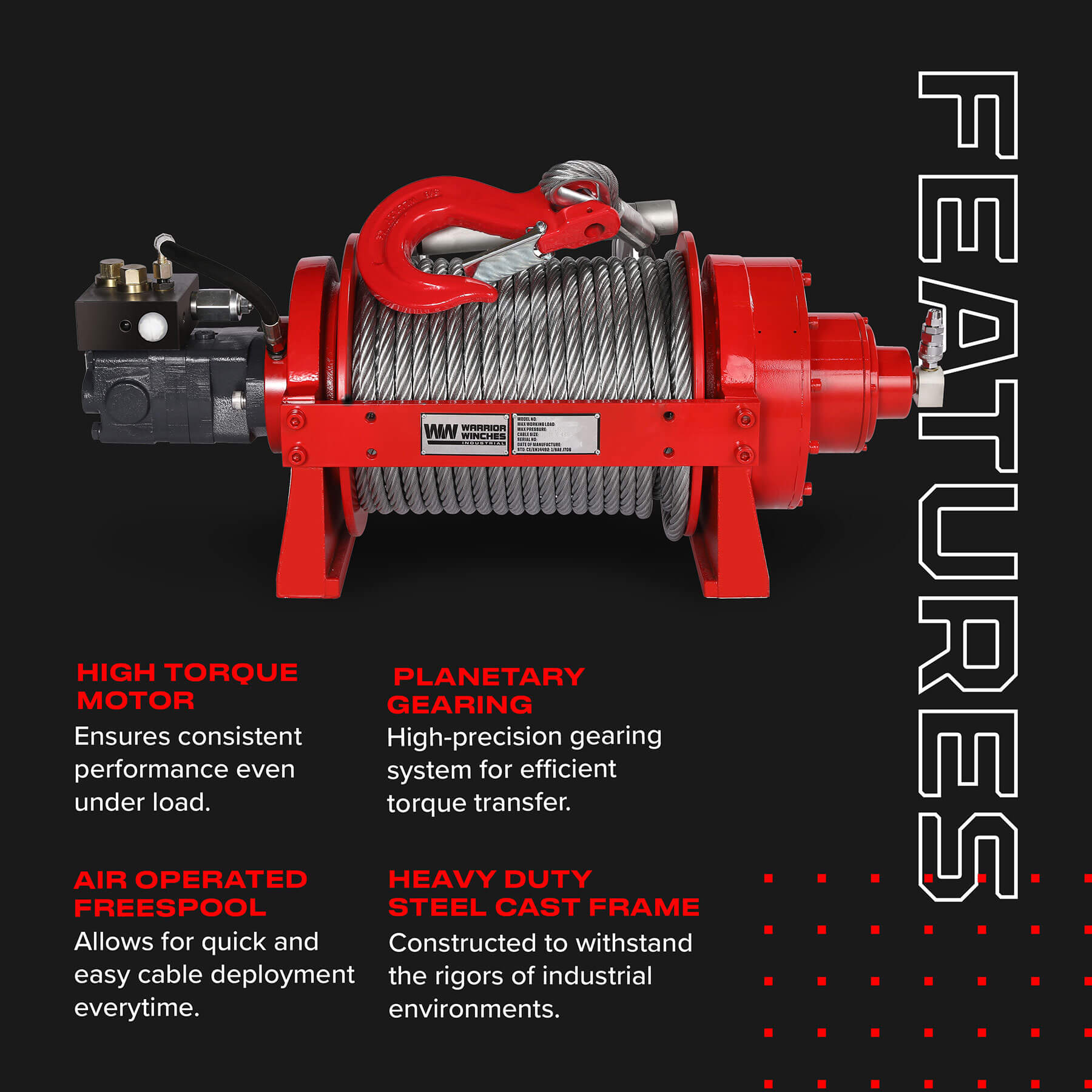

Hydraulic Power Built for Professional Use. The Sauer Danfoss OMS 100 hydraulic motor is designed to deliver high torque and reliable performance under load. With hydraulic operation, the winch can integrate into suitable vehicle or machinery hydraulic systems without relying on a conventional electric winch motor.
39:1 Planetary Gearing for Controlled Power. The 39:1 planetary gearing system provides the mechanical advantage required to turn hydraulic motor output into substantial pulling force. The planetary arrangement is designed to deliver efficient torque transfer while maintaining smooth winch operation.
48 Metres of Heavy-Duty Steel Rope. The 15mm x 48m steel rope provides substantial reach for professional recovery and pulling applications. With up to four layers of rope available on the drum, the JR 10 Tonne maintains excellent pulling capacity as the rope builds up.
Air-Operated Freespool for Faster Deployment. The air-operated clutch allows the steel rope to be deployed quickly without having to power the drum out hydraulically. This can make line setup faster and more efficient when preparing for a recovery or pulling operation.
Automatic Hydraulic Braking for Controlled Loads. The automatic hydraulic braking system provides dependable load control while the winch is operating under pressure. It helps maintain the load securely and allows operators to manage heavy pulls with greater confidence.
Built on a Heavy-Duty Steel Cast Frame. The rugged steel cast frame is designed to withstand the demands of industrial environments. Its heavy-duty construction provides a solid foundation for the winch's high pulling capacity and helps support long-term durability in professional applications.
Smooth Lowering with the Balance Valve. The supplied balance valve helps provide controlled lowering of the load, improving operational control during demanding winching tasks. This is particularly valuable where precise load movement is an important part of the operation.

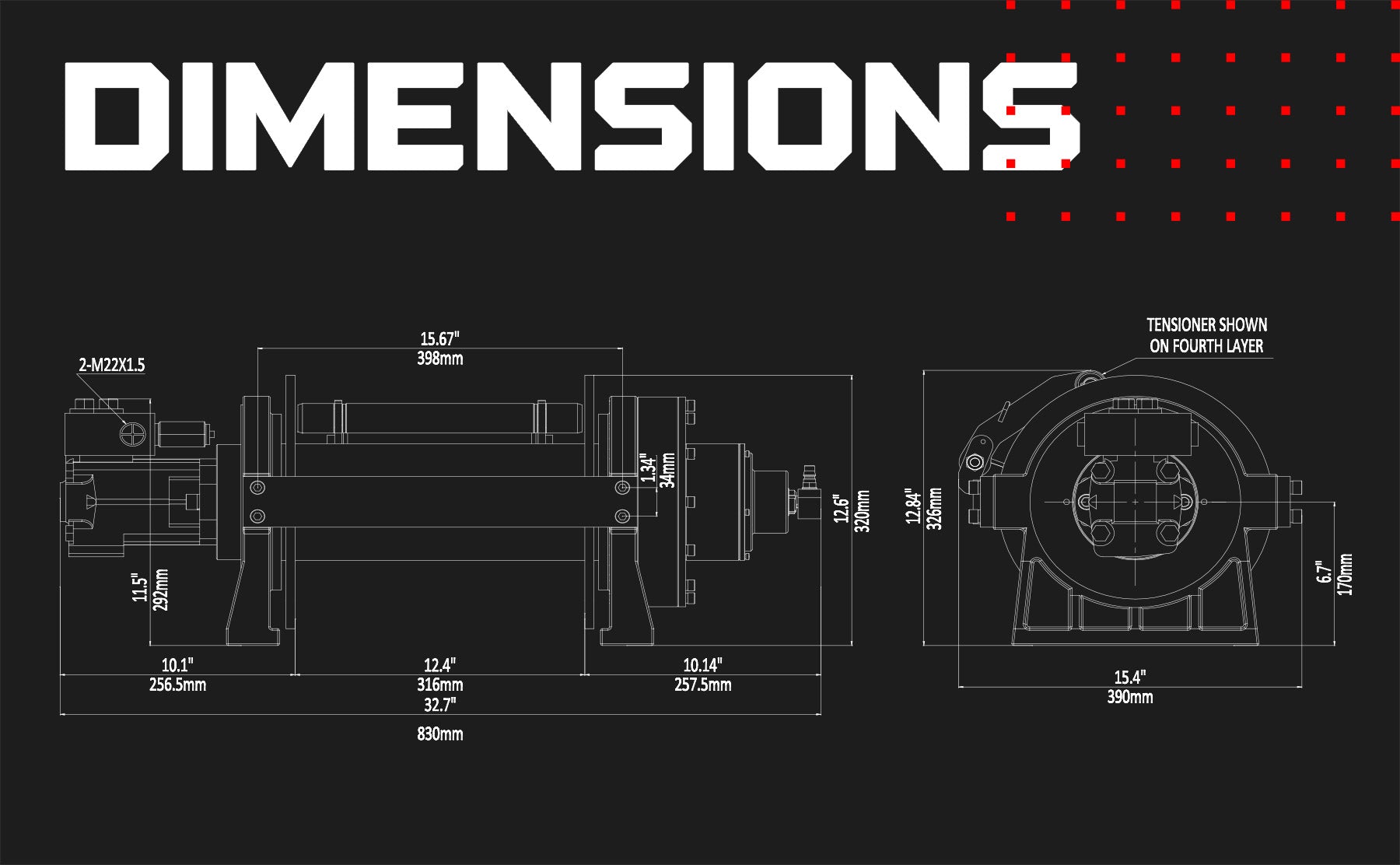

Built for Compact Industrial Installation. Despite its substantial 22,000lb capacity, the JR design is engineered around an efficient footprint. Measuring 830 x 390 x 320mm, it provides serious hydraulic winching capability without unnecessarily compromising available installation space.
Built for Demanding Working Environments. The JR 10 Tonne is designed for commercial and industrial applications where winching equipment needs to perform reliably under demanding conditions. Its hydraulic drive, steel construction and heavy-duty mechanical components make it suited to professional operators who depend on their equipment.
Ready for Professional Applications. The JR 10 Tonne is supplied with the hydraulic winch, 48m steel rope, 22-tonne hook, balance valve and tensioner, providing the core components needed to put this industrial winch to work.
The Warrior Winches JR 10 Tonne Industrial Hydraulic Winch combines 22,000lb of pulling power, a Sauer Danfoss OMS 100 hydraulic motor, 39:1 planetary gearing, air-operated freespool and 48 metres of 15mm steel rope into a serious industrial winching solution. The JR range is backed by a 5-year warranty for complete peace of mind.
