25SPA24

Ninja 2500 Electric Winch - 24v Synthetic Rope

Warranty: 3 Years

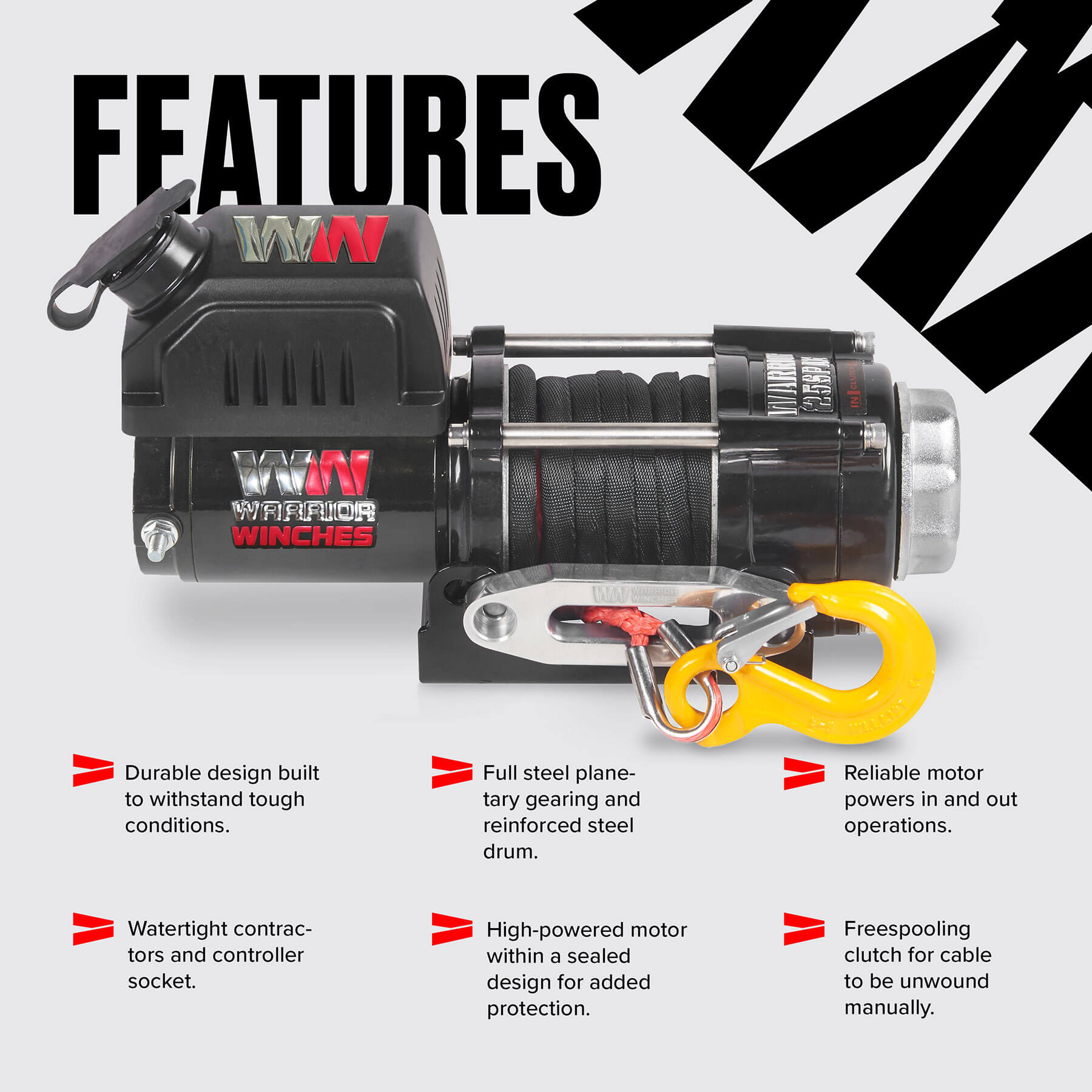

Features

  • Harness 24V Performance with Confidence - The sealed high-power motor helps deliver the responsive performance of the 24V Ninja while protecting the motor from the harsh conditions encountered off-road.
  • Protection Against the Elements - Heavy-duty watertight contactors help shield the electrical system from water and debris, allowing you to concentrate on the recovery rather than the conditions.
  • Built to Transfer Power Efficiently - Full steel planetary gearing provides a strong mechanical foundation for the 2,500lb pulling capacity while helping turn motor output into dependable recovery force.
  • Durability Behind the Synthetic Rope - The strengthened steel drum is designed to withstand demanding pulling forces, providing a tough and reliable platform for the lightweight synthetic rope.
  • Keep Your Connection Protected - The watertight controller socket helps prevent moisture from reaching the control connection, helping maintain consistent operation in wet and unpredictable conditions.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Ninja Range is our performance-focused range of electric winches. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed for any winching application.

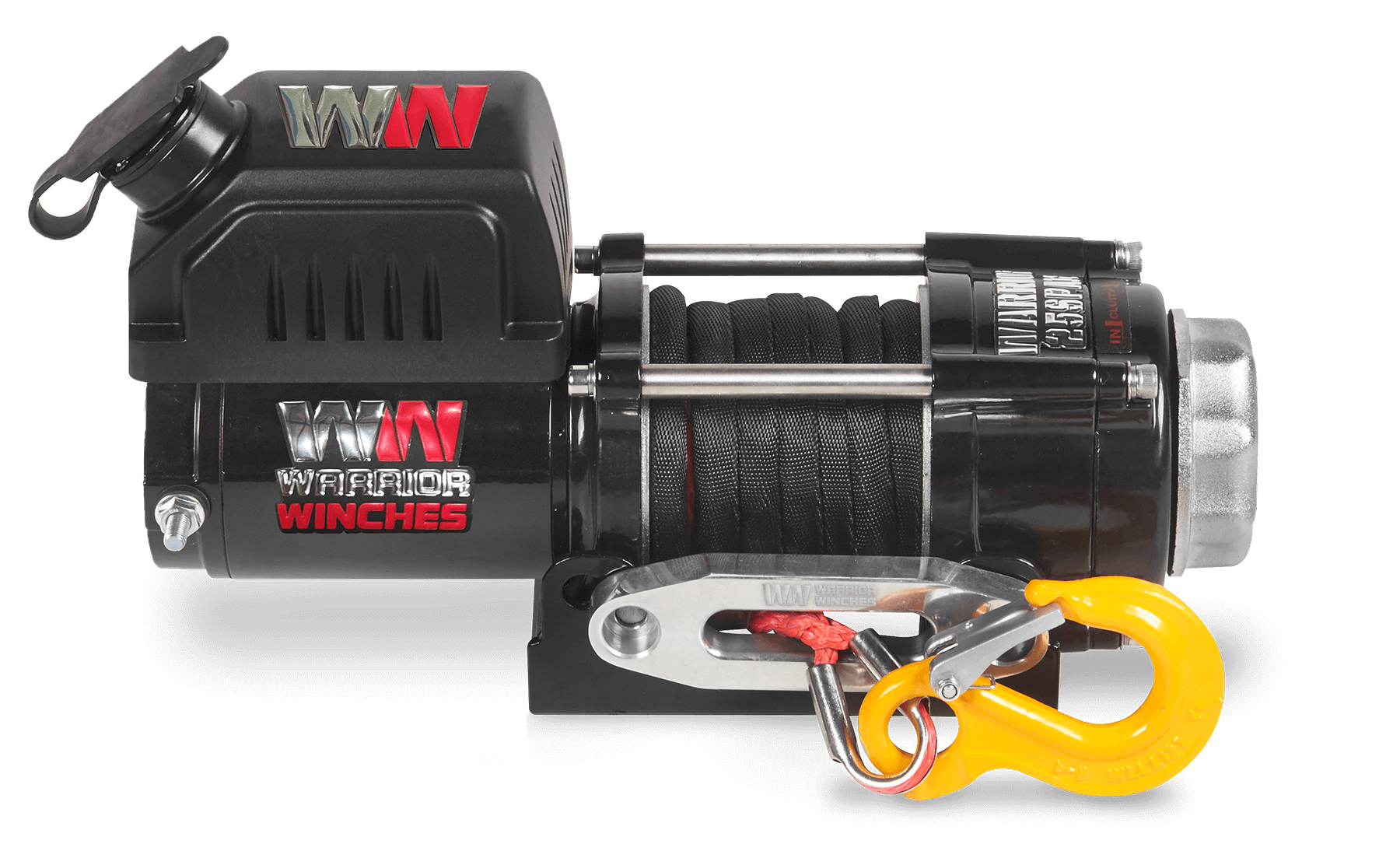

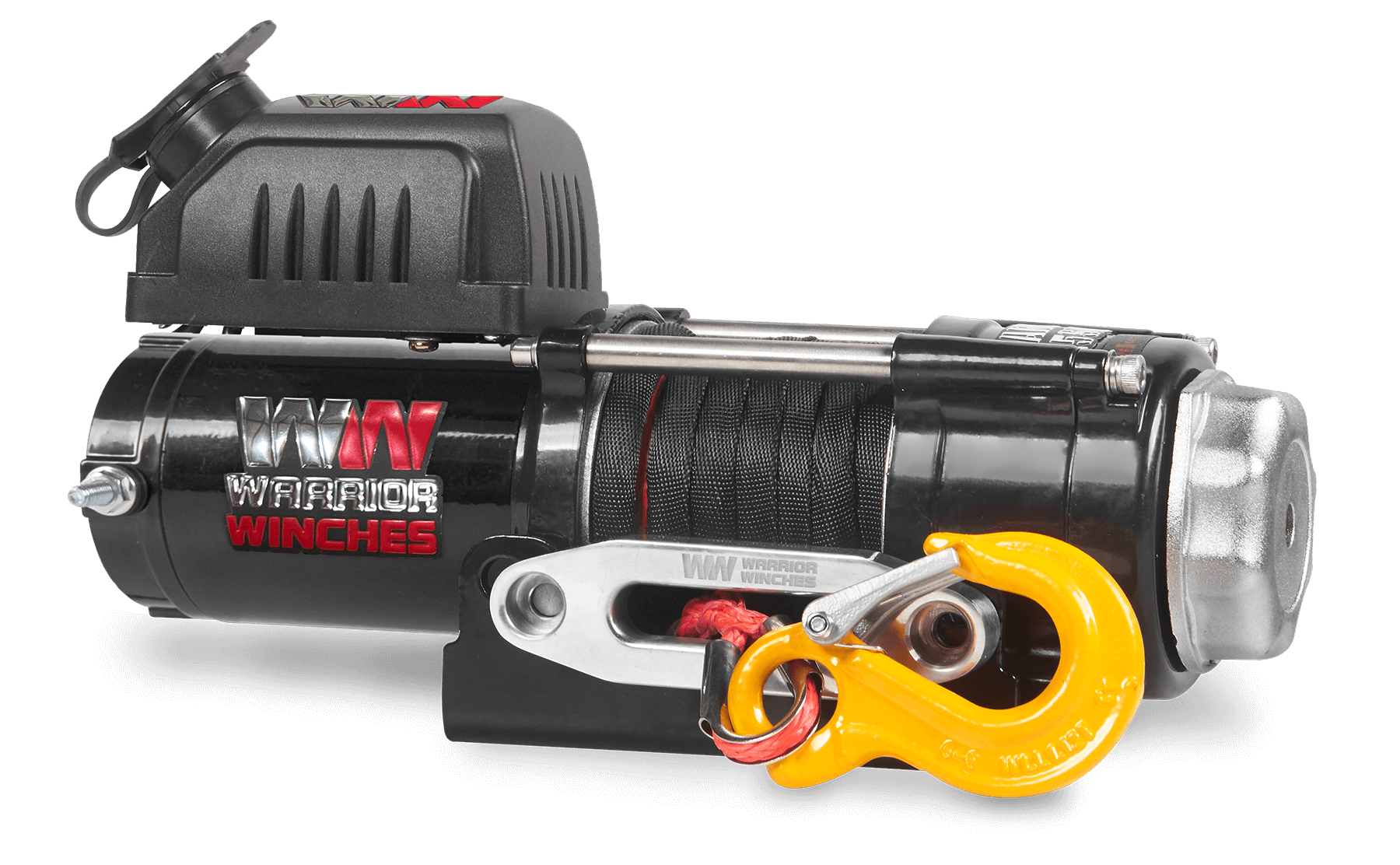

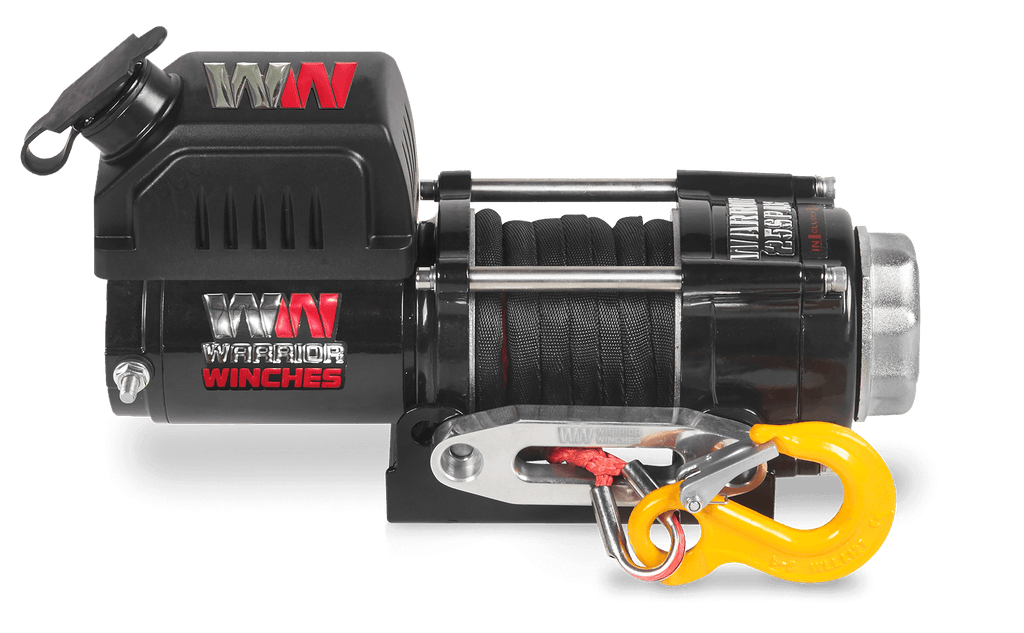

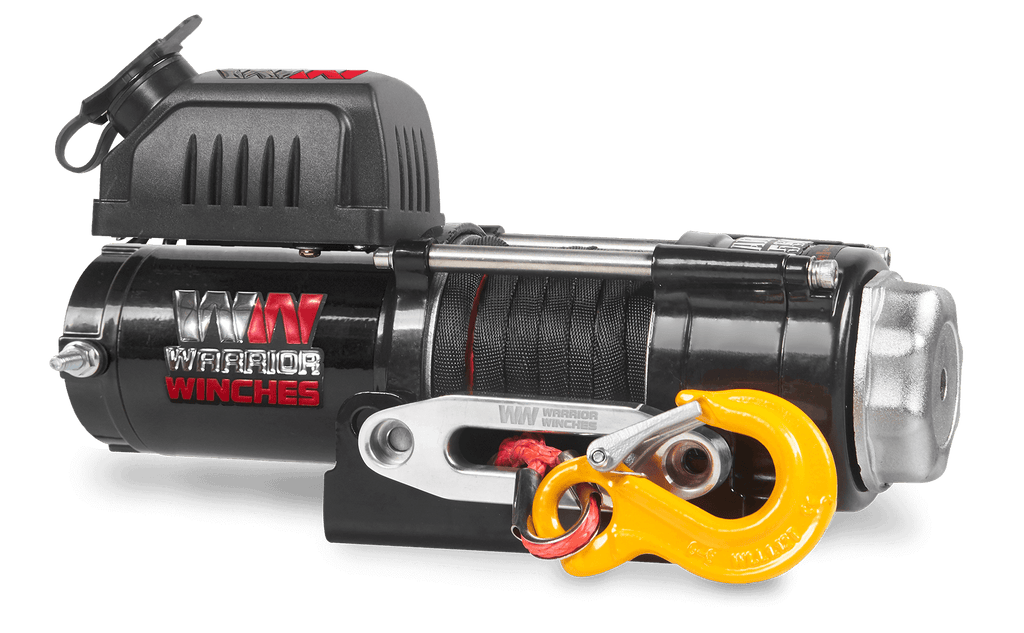

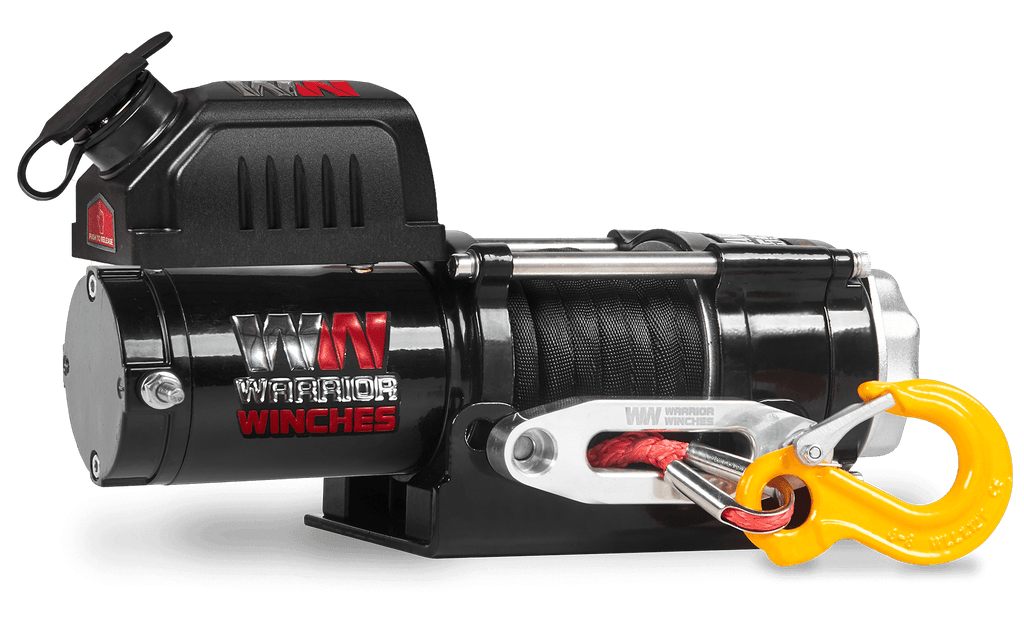

The Ninja 2,500lb 24V electric winch with synthetic rope combines 2,500lb (1,134kg) of rated line pull with a powerful 24V motor and lightweight synthetic rope. Designed for increased pulling capability and faster line performance while keeping the overall winch compact at just 7.5kg.

2,500lb of compact recovery power. The 3.2hp (2.4kW) 24V motor delivers up to 2,500lb (1,134kg) of rated line pull through a 170:1 planetary gearing system. This gives you the pulling capacity to tackle mud, steep ground, obstacles and demanding recovery situations without adding unnecessary bulk.

24V power. Faster recovery performance. The 24V system delivers strong line-speed performance under load, reaching up to 8.2m/min at the full 2,500lb rated pull. That means less waiting for the line to move when you're working through a difficult recovery and need to get moving again quickly.

Synthetic rope for easy handling. The 14m x 5mm synthetic rope is lightweight and easy to handle, making manual deployment and recovery setup simpler. The supplied hawse fairlead provides a smooth route for the rope, while the included 1/4 hook gives you a secure connection point for recovery work.

Built to perform under pressure. The Ninja 2,500lb features a sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing, providing a durable foundation for demanding off-road use. The strengthened steel drum and watertight controller socket add further protection to key components when you're working in challenging conditions.

Get your line into position quickly. The manual freespooling clutch allows you to disengage the gearbox and pull the synthetic rope out by hand, helping you reach your recovery point without relying on powered line deployment. Once positioned, the automatic in-drum braking system helps maintain control of the load during winching.

More options when the recovery gets difficult. The included 2-tonne pulley block provides additional flexibility when a recovery requires greater mechanical advantage. Used as part of a suitable rigging setup, it can help increase the effective pulling capability available when tackling more demanding situations.

Performance without unnecessary weight. Measuring just 335 x 113 x 188mm and weighing 7.5kg, the Ninja 2,500lb provides substantial recovery capability while remaining compact. The lightweight synthetic rope also helps keep the overall setup easier to handle.

Ready for the trail. The Ninja 2,500lb comes supplied with synthetic rope, hawse fairlead, heavy-duty battery leads, a 3.8m wired remote, 1/4 hook, 2-tonne pulley block, mounting plate and mounting hardware. With the essential recovery equipment included, you can get the winch fitted and ready for your next off-road adventure.

Backed by a 3-year warranty, the Warrior Winches Ninja 2,500lb 24V electric winch with synthetic rope delivers lightweight performance, fast line operation and dependable recovery capability.

Sku25SPA24
EAN5060423980667
Rated Line Pull2500 lbs
Motor Type24V: Input: 3.2hp / 2.4kW; Output: 1.2hp / 0.9kW
Rated Volt24
ClutchManual
Gearing170:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)37.0 x 80.0 mm
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length) 5.0 mm x 14.0 m
FairleadHawse
Mounting Pattern124mm x 76mm mm
Dimensions335 x 113 x 188 mm
Weight7.5 kg
Warranty3 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2500 (1134)
2 2033 (922)
3 1713 (777)
4 1480 (671)
5 1303 (591)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 14.1 (4.3) 10.5 (3.2) 2016
500 (227) 9.8 (3.0) 10.2 (3.1) 55 35
1500 (680) 7.5 (2.3) 9.2 (2.8) 95 65
2500 (1134) 4.3 (1.3) 8.2 (2.5) 160 100
  • Ninja Winch
  • Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • 2 Tonne Pulley Block
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Specifications Sheet  Download

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
