The Warrior Ninja Winch Hoist range offers compact, powered winching solutions for applications where a winch can supplement an existing lifting arrangement. (For dedicated lifting solutions please view our electric or scaffold hoists). With hardware and integrated control features, these models provide a practical way to add powered movement when a compatible electrical supply is available.

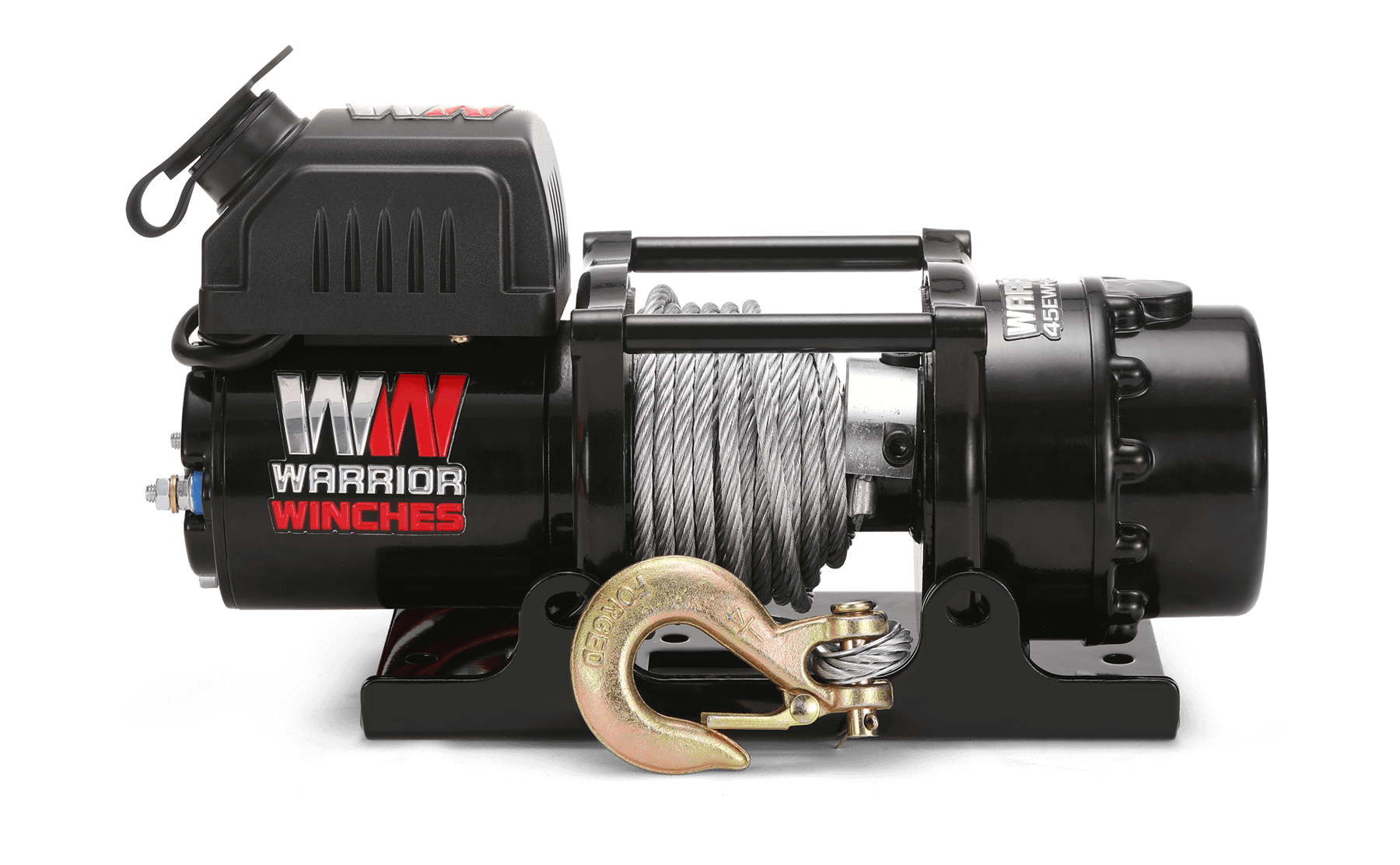

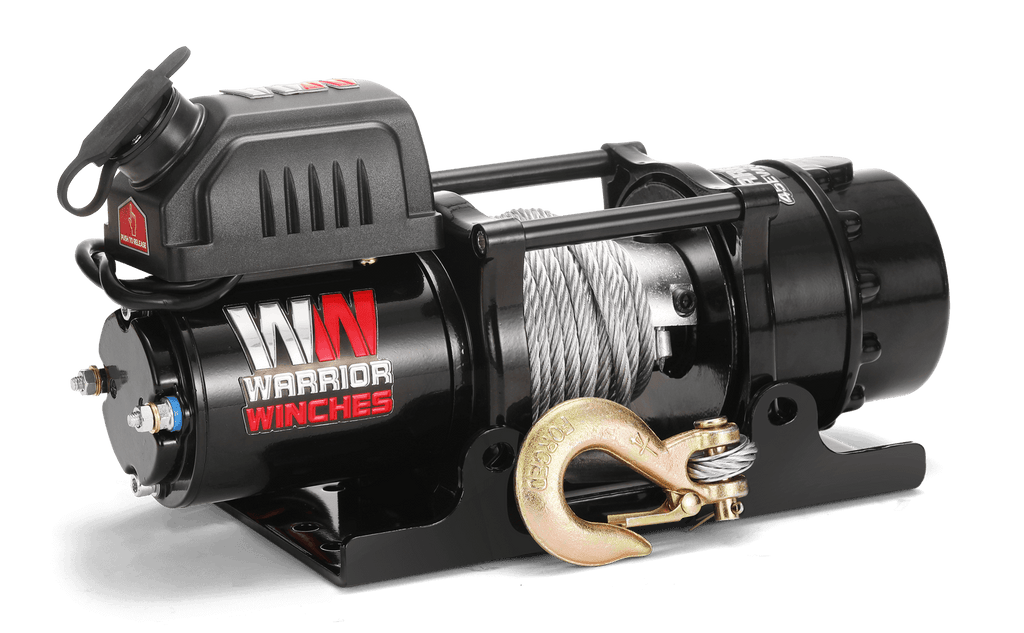

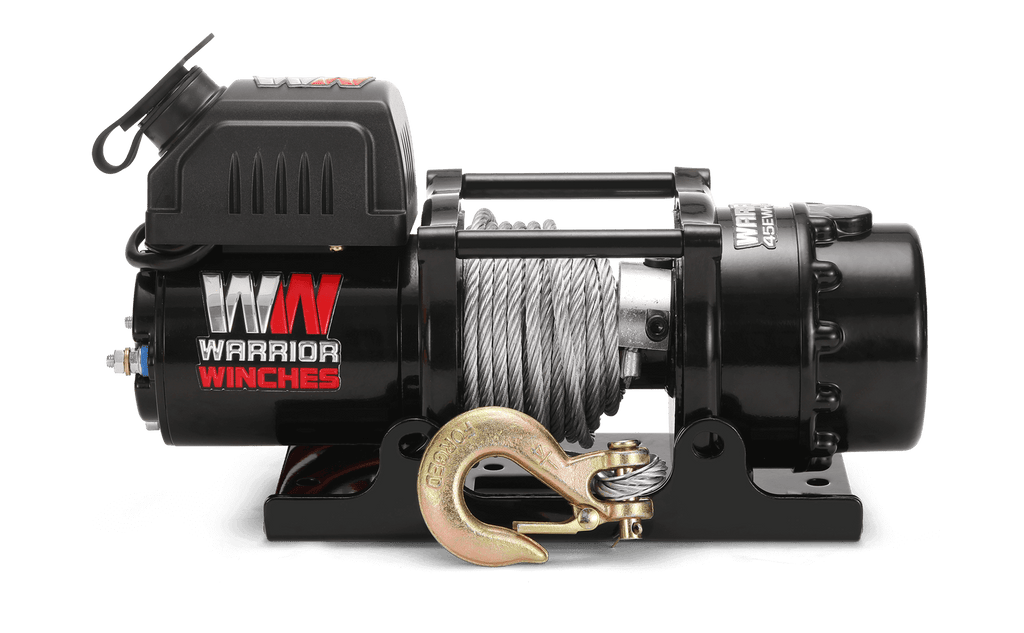

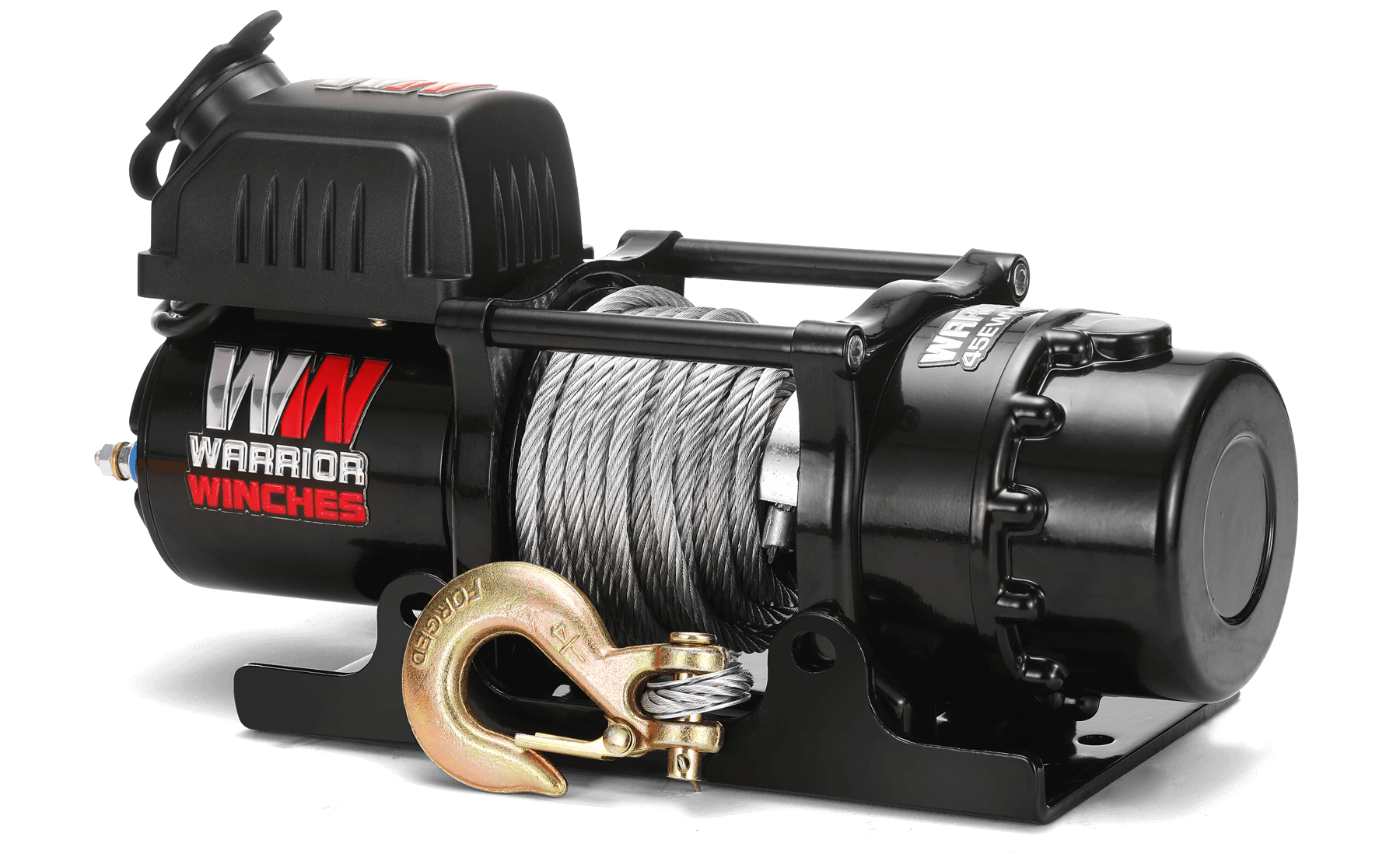

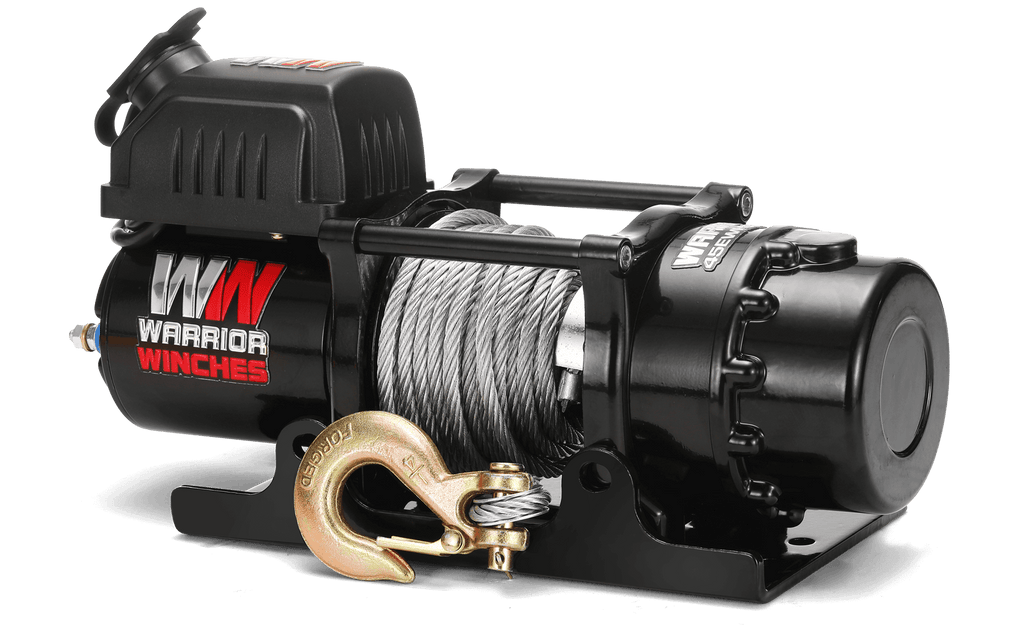

The Warrior Ninja 400kg 24V Winch Hoist combines a 3.9hp high-torque motor with full-steel planetary gearing and a supplied mounting tray. Designed for a compatible 24V power supply, it delivers a maximum rated line pull of 408kg, with 10 metres of steel rope and a full-load holding brake to support controlled operation.
Add Powered Lifting Capability with Up to 408kg of Rated Line Pull. With a maximum rated line pull of 900lb (408kg) on the first rope layer, the Ninja 400 provides useful pulling capacity for suitable supplementary lifting tasks.
Choose 24V Power for Your Installation. The 24V DC motor provides 2.9kW (3.9hp) of input power and 1.3kW (1.7hp) of output power. Compared with the 12V Ninja 400, the 24V version draws less current at equivalent listed loads, which can help when planning the electrical supply and associated wiring for a compatible installation.

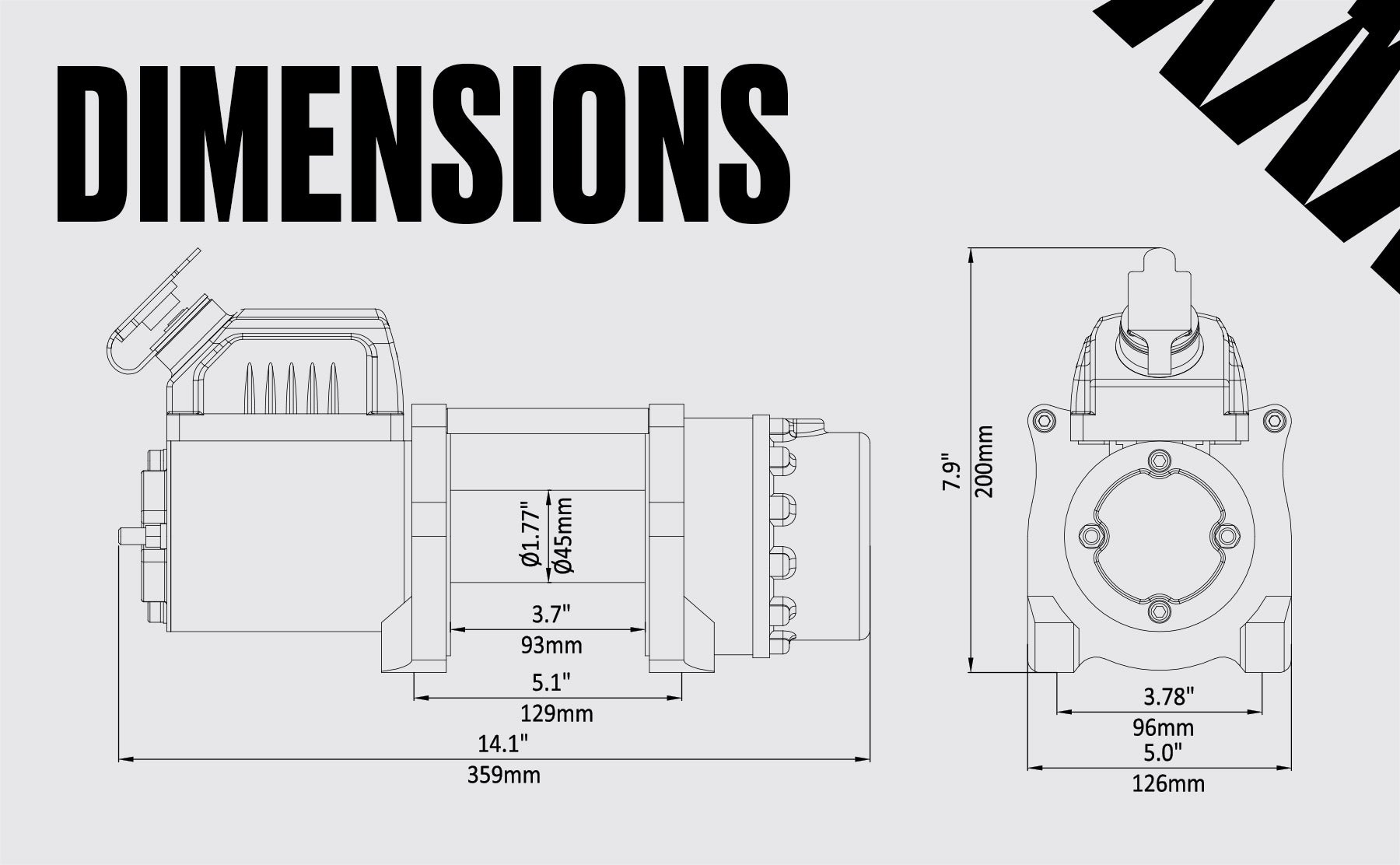

Maintain Useful Reach with 10 Metres of Steel Rope. The supplied 6.4mm-diameter steel rope provides a working length of up to 10 metres. With a compact drum measuring 45mm in diameter by 93mm long, the hoist offers a practical rope arrangement for suitable installations where space and reach both matter.
Simplify Installation with the Included Mounting Tray. A mounting tray and hardware are supplied to help make fitting the unit more straightforward. The four-point M8 mounting pattern allows it to be secured to a suitable support, provided the structure and fixings are rated for the forces generated during operation.
Pause with Support from a Full-Load Holding Brake. The integrated brake is designed to hold the rated load when the winch stops, helping keep the load in position during pauses and cool-down periods.
Rely on Robust Full-Steel Planetary Gearing. The 172:1 gear ratio transfers motor power to the drum, while the full-steel planetary gear system is designed for durable, smooth-running performance. This compact gearing arrangement helps deliver the pulling force required for the hoist's rated capacity.
Help Protect Electrical Components from Moisture. Heavy-duty waterproof contactors help protect the electrical switching components against moisture exposure. This supports reliable operation in appropriate conditions, although it does not mean the entire hoist is waterproof or suitable for unrestricted exposure to the elements.

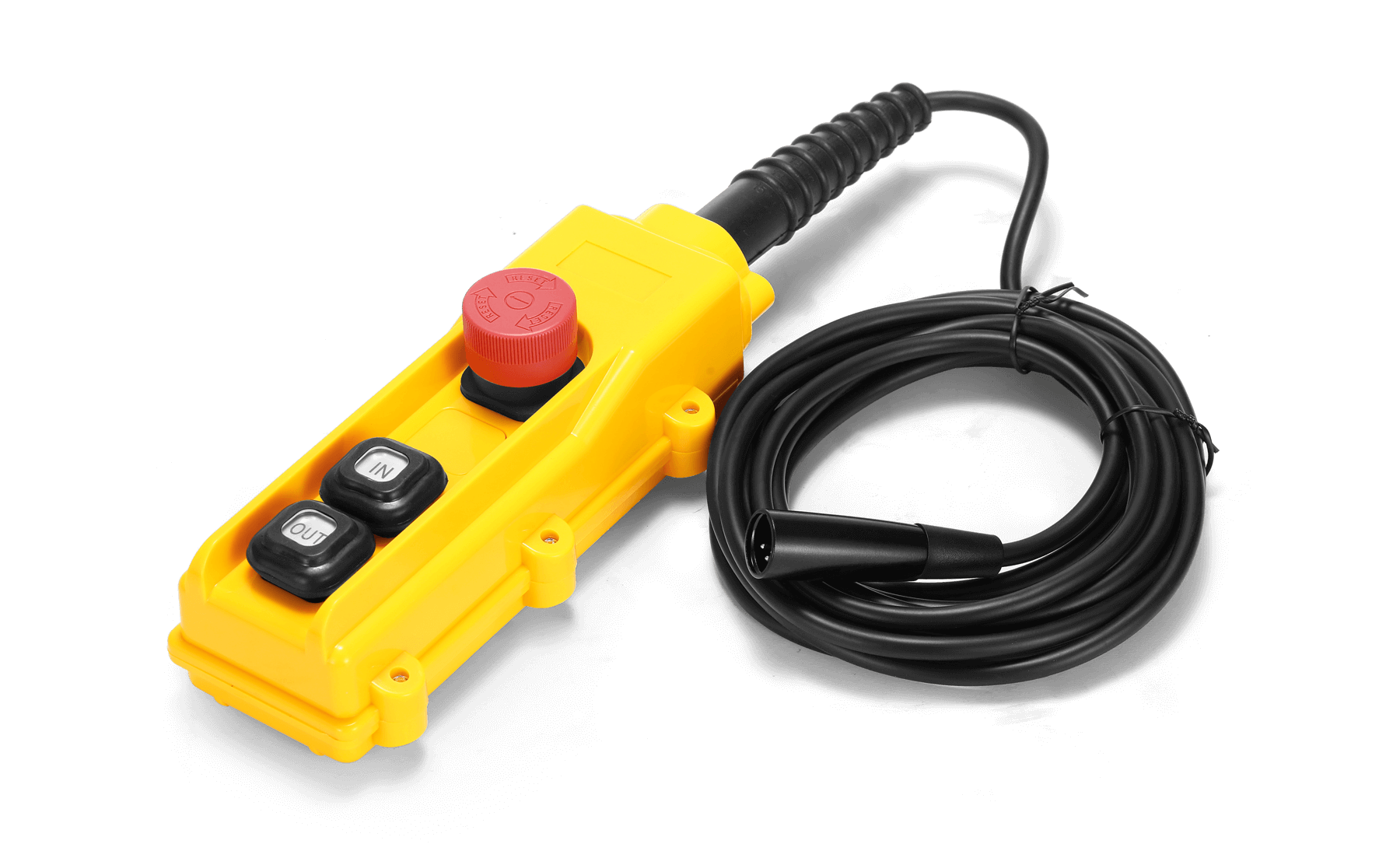

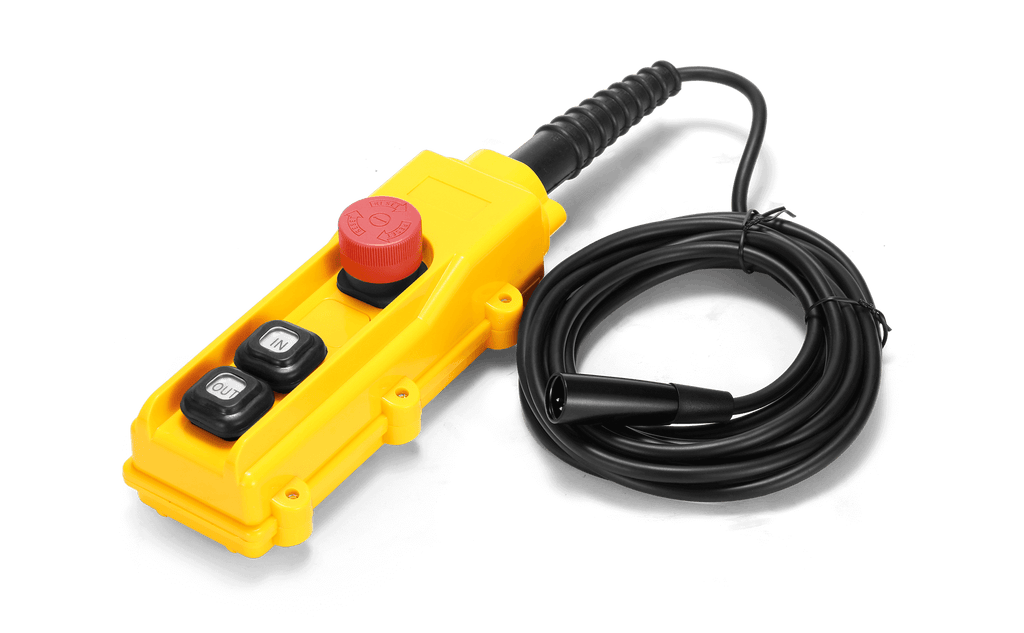

Manage Lifting from the Wired Hand Remote. The supplied wired handset allows the operator to control the winch from a convenient position. Its integrated emergency stop provides a direct way to stop operation when necessary.

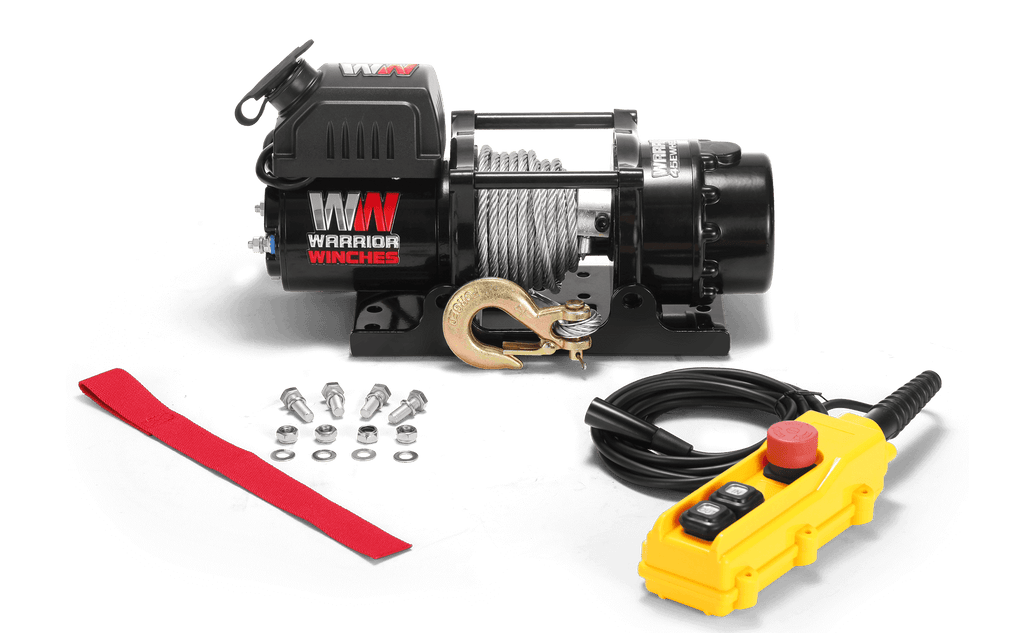

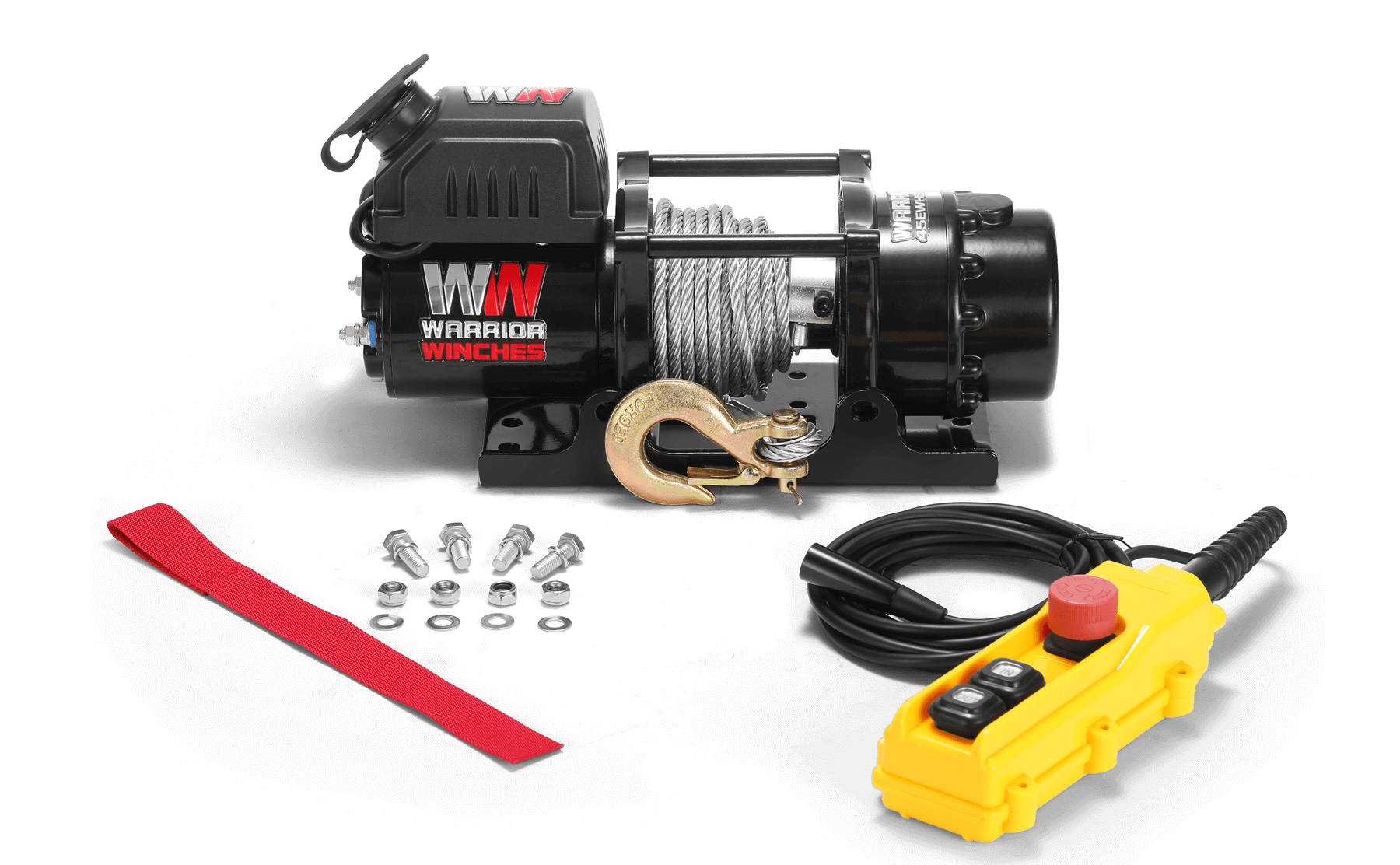

A Compact Addition to a Suitable Lifting Arrangement. The package includes the Ninja Winch Hoist, steel rope, heavy-duty hook, wired remote handset with emergency stop, mounting tray and mounting hardware. Before use, ensure the winch is suitable for the intended task and that the supporting structure, electrical supply and complete lifting arrangement are correctly specified.
With its 24V motor, compact mounting arrangement and 10m steel rope, the Warrior Ninja 400kg 24V Winch Hoist is designed to add powered winching capability to suitable lifting setups. It comes complete with a 12-month warranty.
The Winch Hoists are designed to supplement a lifting solution. For dedicated lifting solutions please view our electric or scaffold hoists.
