T225S12

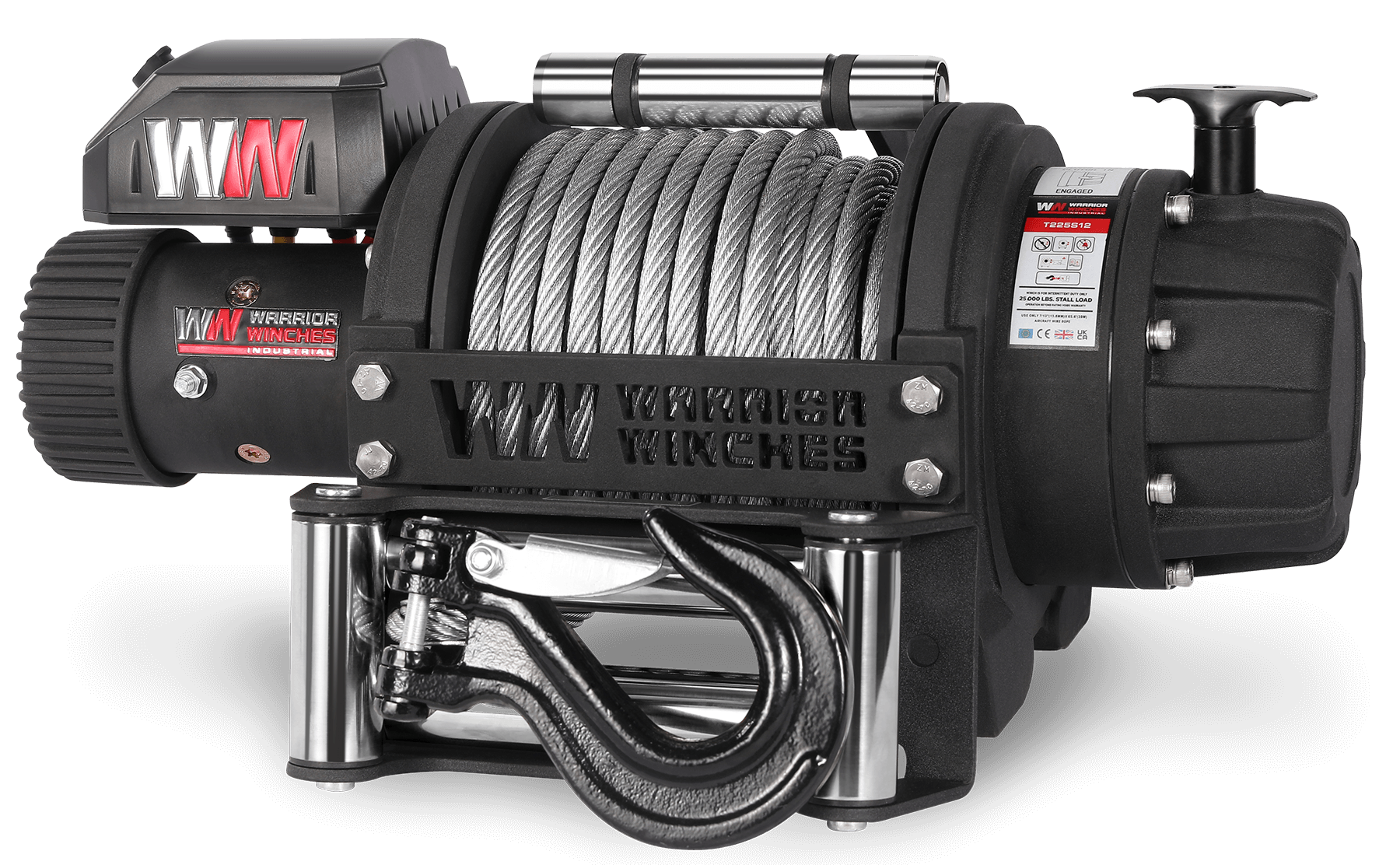

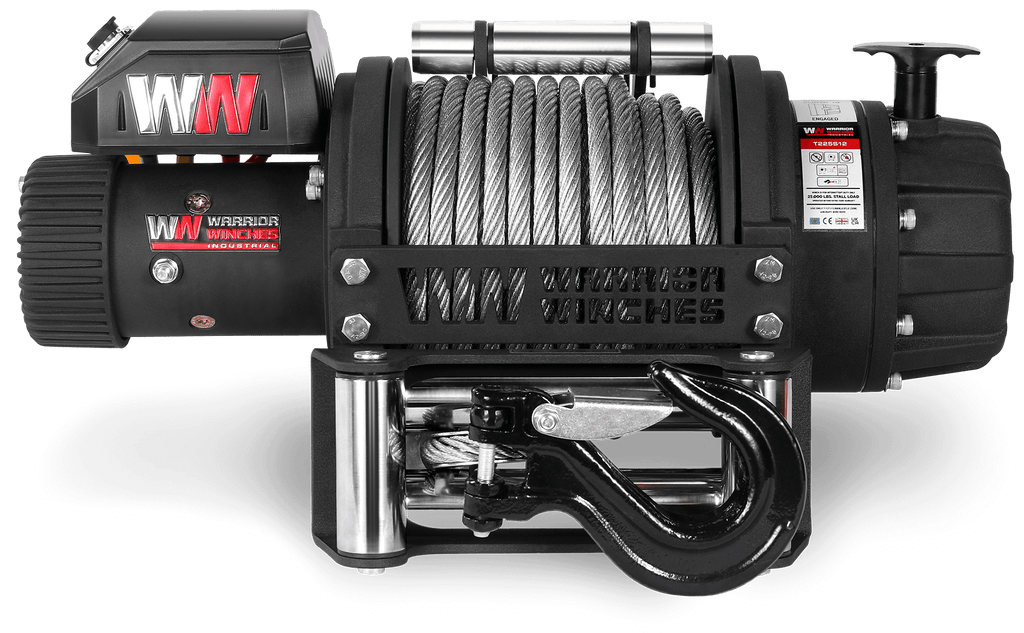

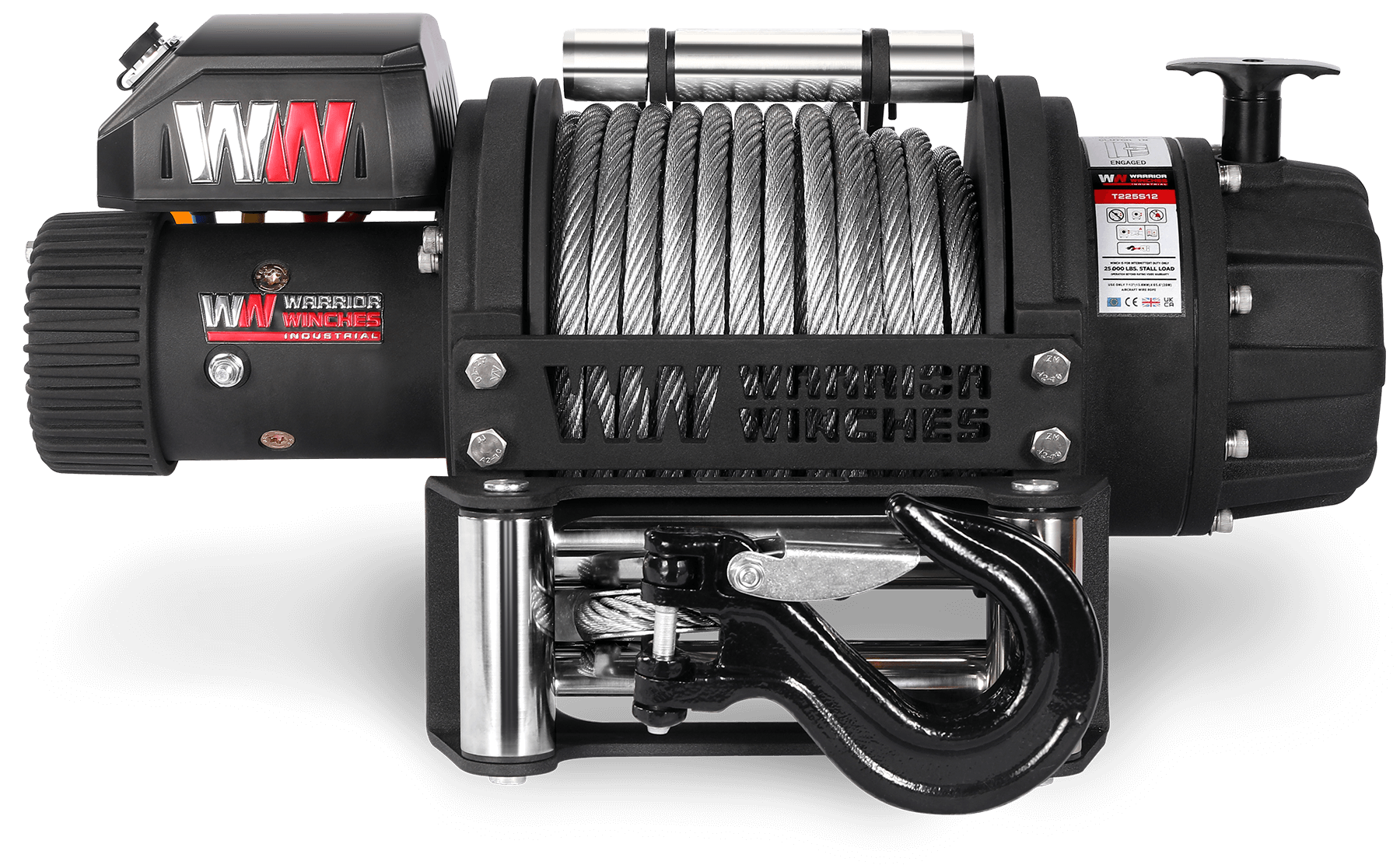

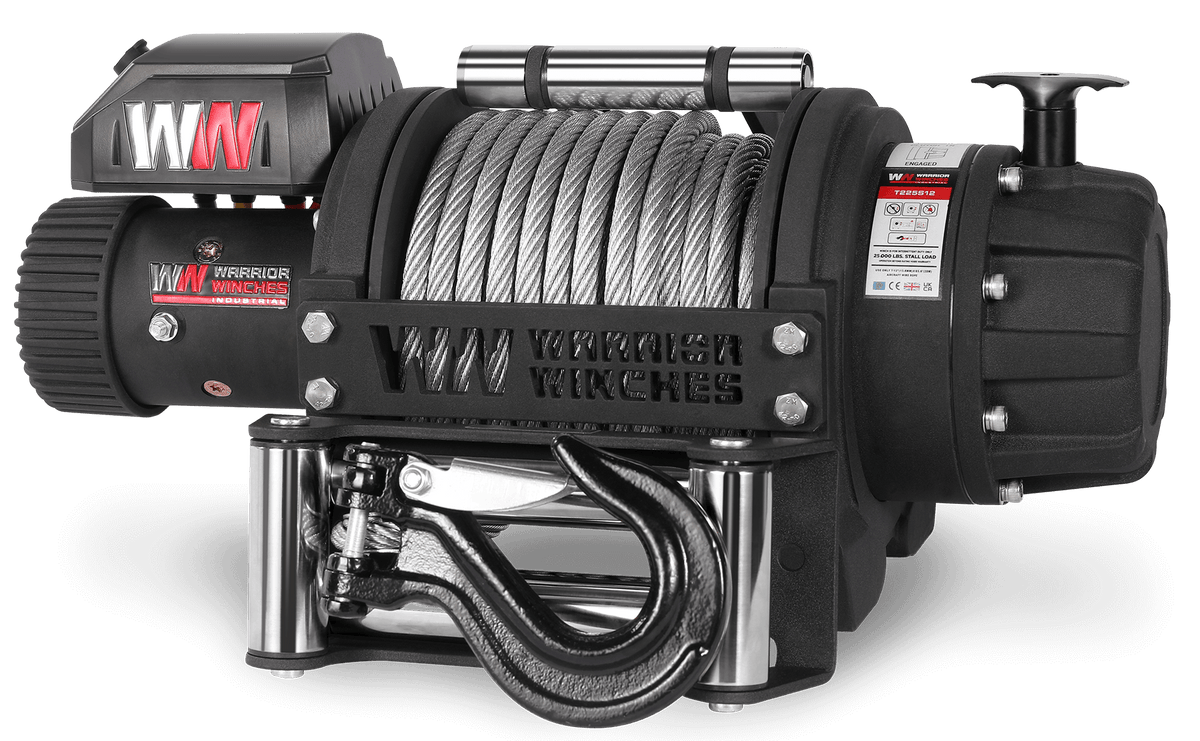

T1000 25000lb Electric Winch - 12v Steel Rope

Warranty: 5 Years

Features

  • Take on the biggest recovery challenges - With an immense 25,000lb rated line pull, the T1000 is built for situations where vehicle weight, terrain or load demands far more than a standard recovery winch can provide.
  • Extend the life of your rope - The patented external braking system moves braking heat away from the drum, helping reduce heat build-up on your rope and maintain controlled performance during heavy pulls.
  • Excellent performance in extreme temperatures - Special lithium grease helps the winch operate smoothly across severe temperature ranges, reducing wear and helping maintain dependable performance.
  • Maximum protection in the harshest environments - IP68 military-grade protection keeps both the winch and control box protected against dust and water ingress, helping the T1000 perform in extreme conditions.
  • Protect the winch from excessive loads - Overload protection helps prevent damage when the winch is subjected to extreme pulling forces, adding another layer of protection during demanding recoveries.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Originally engineered as an advanced military prototype, the T1000 Severe Duty Warrior Winch was built to withstand the harshest environments on the planet. Designed for extreme performance in severe climates, this winch has already proven itself in the field, earning high praise from defence experts and industry leaders alike.

After its standout debut at the Defence and Security Equipment International Expo, we made the decision to unleash the T1000 range for widespread use. Now, this battle-ready powerhouse is available for those who demand nothing but the best - whether for industrial, commercial, military, or hardcore off-road applications.

Serious pulling power when the job demands it. The T1000's powerful 6.4kW 12V motor delivers up to 25,000lb (11,340kg) of rated line pull, giving you the muscle to recover heavy vehicles, move demanding loads and tackle recovery operations where lesser winches simply aren't up to the task. Combined with a hardened 3-stage planetary gearbox and 450:1 gear ratio, the T1000 delivers the high torque and controlled power you need to pull with confidence.

Built to perform when conditions turn against you. Extreme-temperature lithium grease helps keep the drivetrain running smoothly in punishing climates, while the patented external braking system helps move heat away from the drum during demanding winching operations. The result is dependable performance when you're working hard and the conditions are far from ideal.

Control the pull your way. With both wired and wireless remote controls included, you have the freedom to operate the winch from the position that works best for the job. The manual clutch lets you quickly disengage the drum for controlled free-spooling, helping you get the rope out faster and spend less time preparing for a recovery.

Built around serious-duty hardware. Supplied with 20m of 13.8mm steel rope and a heavy-duty stainless steel roller fairlead, the T1000 is ready for high-capacity pulling straight out of the box. Every component has been selected to deliver the strength and durability demanded by industrial, commercial, military and extreme off-road users.

Ready for the elements. Both the winch and control box carry an IP68 rating, providing protection against dust and water ingress. Whether you're working through mud, rain, dust or harsh outdoor conditions, the T1000 is engineered to keep performing when the environment is working against you.

When the vehicles are heavy, the terrain severe and conditions extreme, the T1000 Severe Duty Winch delivers the pulling power and durability needed to get the job done. With a formidable 25,000 lb (11.3 tonne) line pull, it is built for demanding recovery and continuous pulling applications across heavy vehicle recovery, plant and machinery, commercial transport, forestry, defence, utilities and extreme off-road operations.

Whether recovering a heavy vehicle, freeing machinery from difficult terrain or providing dependable pulling power in remote and challenging environments, the T1000 is engineered to perform when the conditions are at their toughest. With military-grade components, a 25,000lb rated line pull and a 5-year warranty, it's engineered to deliver the strength, control and reliability you need - wherever the job takes you.

SkuT225S12
EAN5060966745945
Rated Line Pull25000 lbs
Motor Type12V: Input: 8.6hp / 6.4kW; Output: 4.2hp / 3.1kW
Rated Volt12
ClutchManual
Gearing450:1
Gearing SystemPlanetary
Braking ActionPatented ratchet
Drum Size (Diameter x Length)120.0 x 198.0 mm
ControlsWired Remote
Wireless Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 13.8 mm x 20.0 m
FairleadRoller
Mounting Pattern254mm × 114.3mm mm
Dimensions638 x 313 x 294 mm
Weight100.0 kg
Warranty5 Year
Waterproof Rating (IP)68



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 25000 (11340) 17.7 (5.4)
2 20724 (9400) 39.4 (12.0)
3 17698 (8027) 62.3 (19)
4 15443 (7005) 65.6 (20)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 27.5 (8.4) 45
5000 (2268) 9.5 (3.0) 190
10000 (4536) 6.9 (2.1) 290
15000 (6804) 5.2 (1.6) 380
22000 (9979) 3.9 (1.2) 465
25000 (11340) 2.6 (0.8) 530

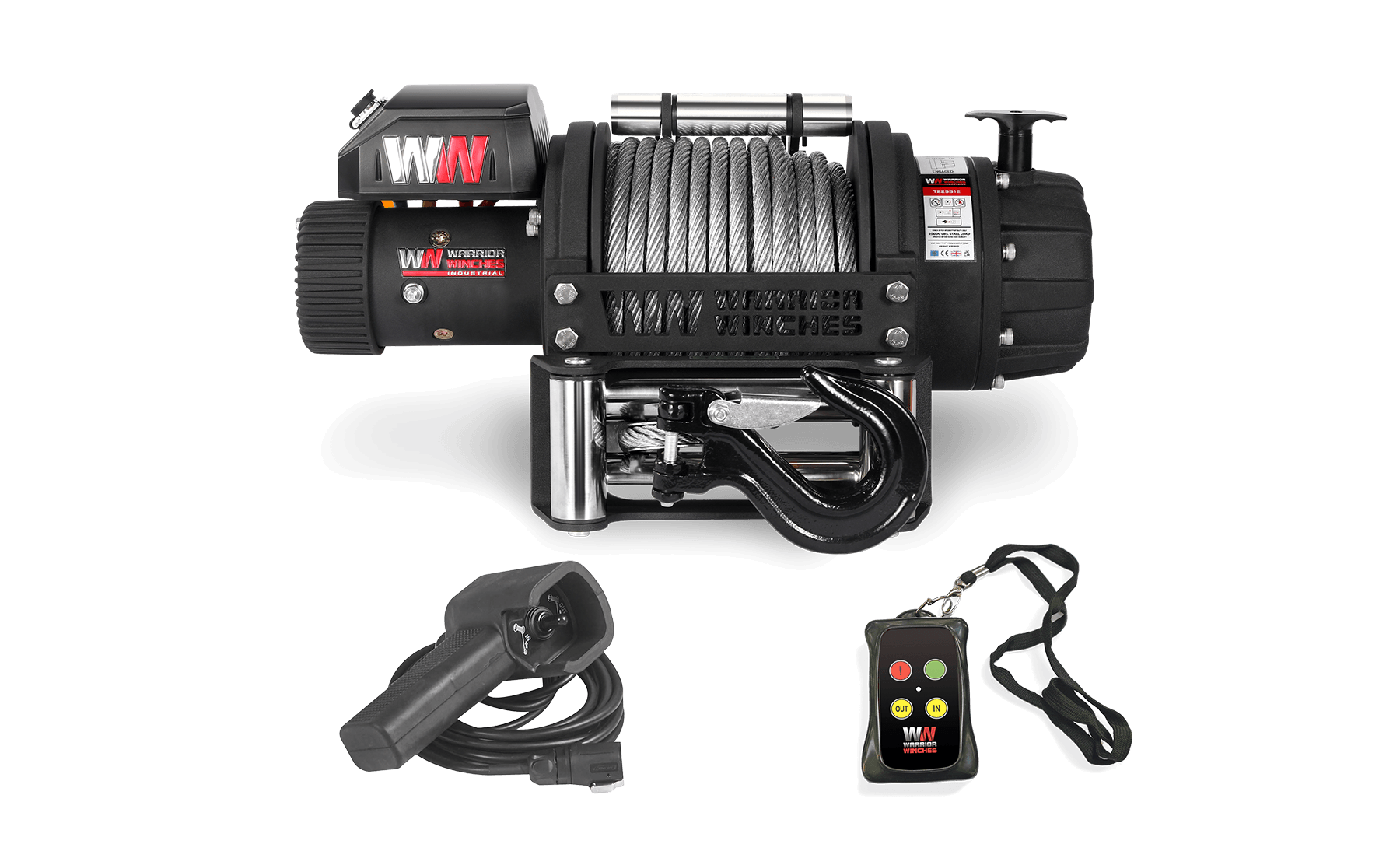

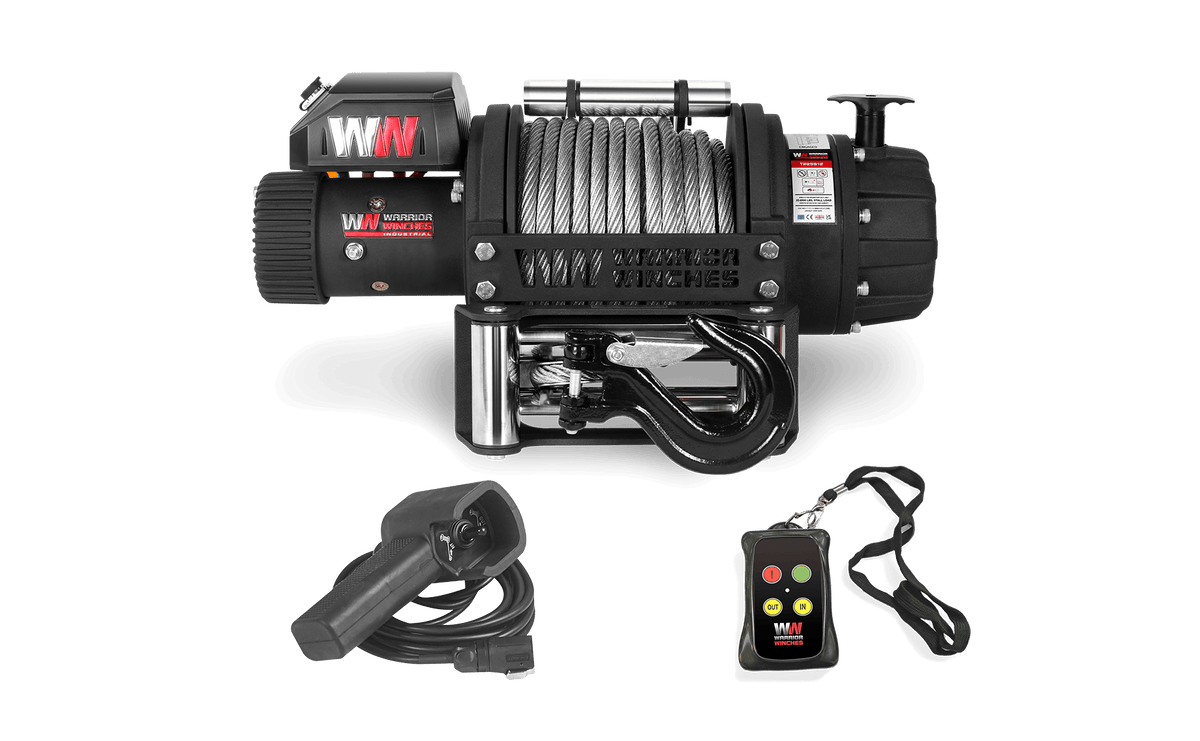

  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Heavy Duty Wireless Remote
  • Cable Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Specifications Sheet  Download

Load Test

Brake Test

Warrior Winches 5 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
