60TTSU24

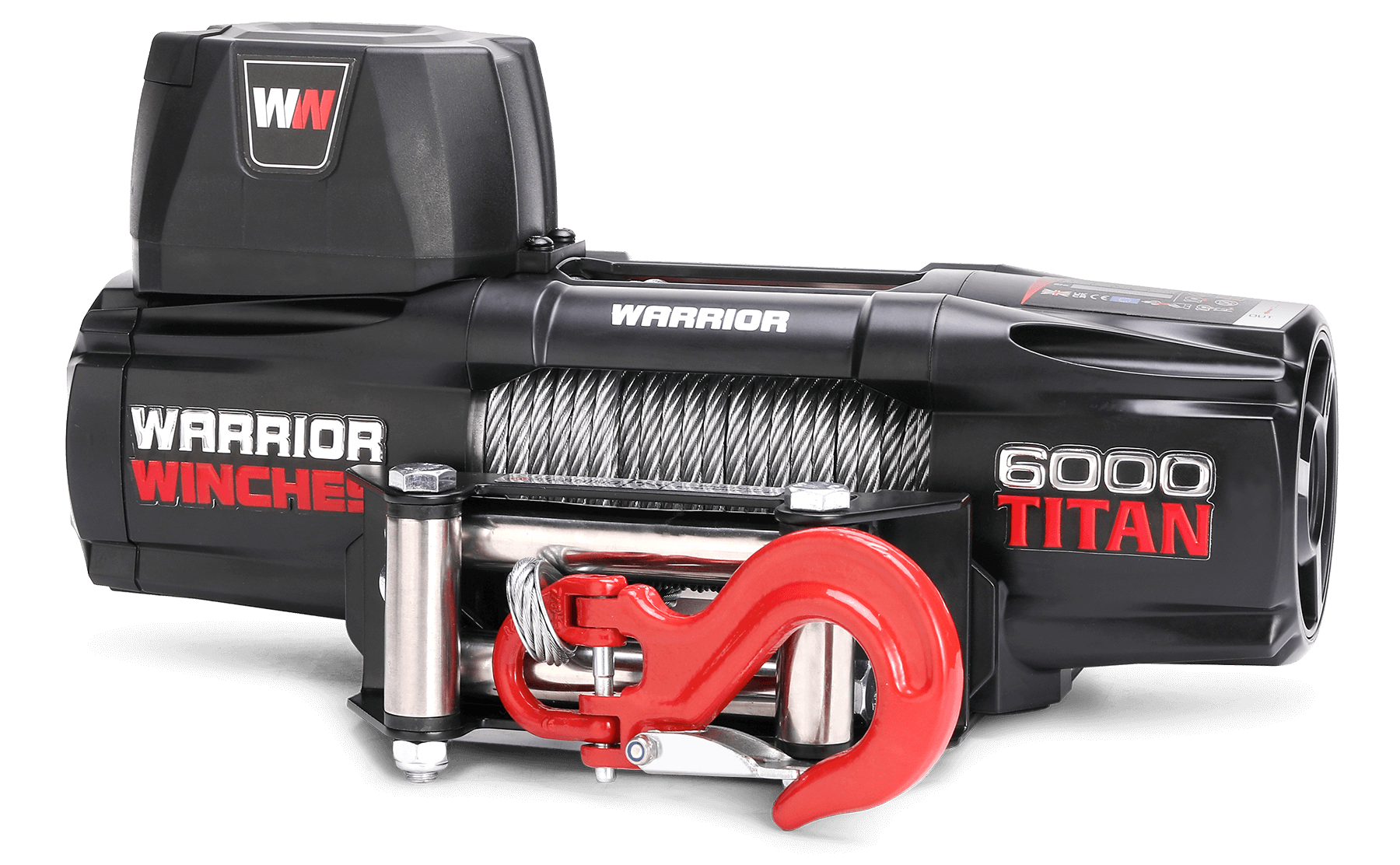

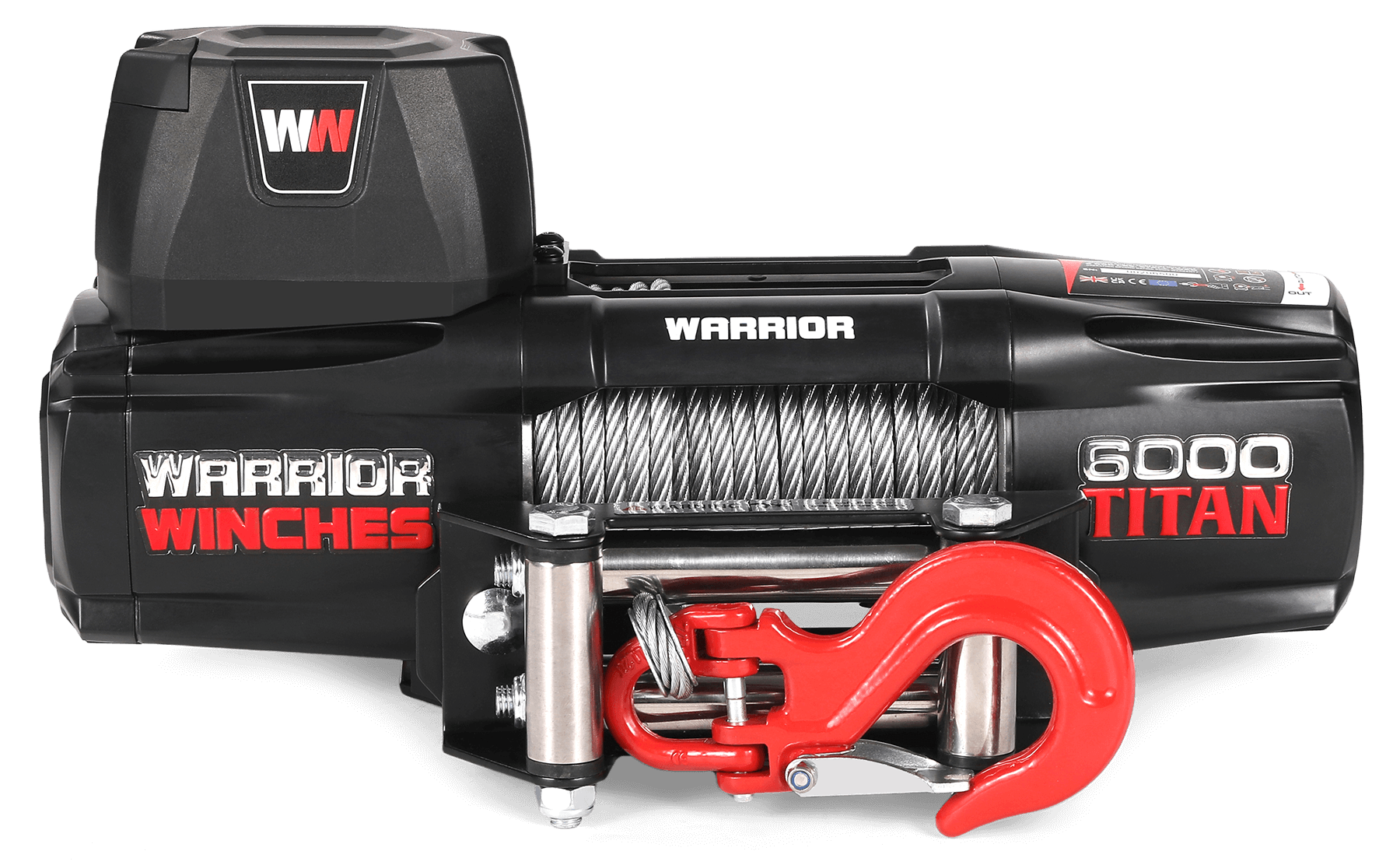

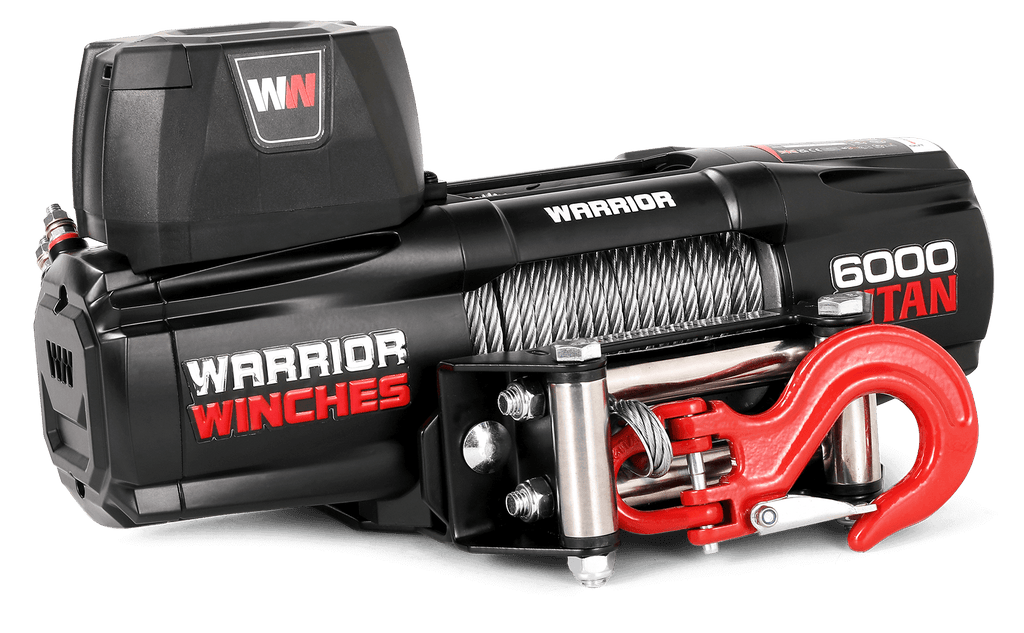

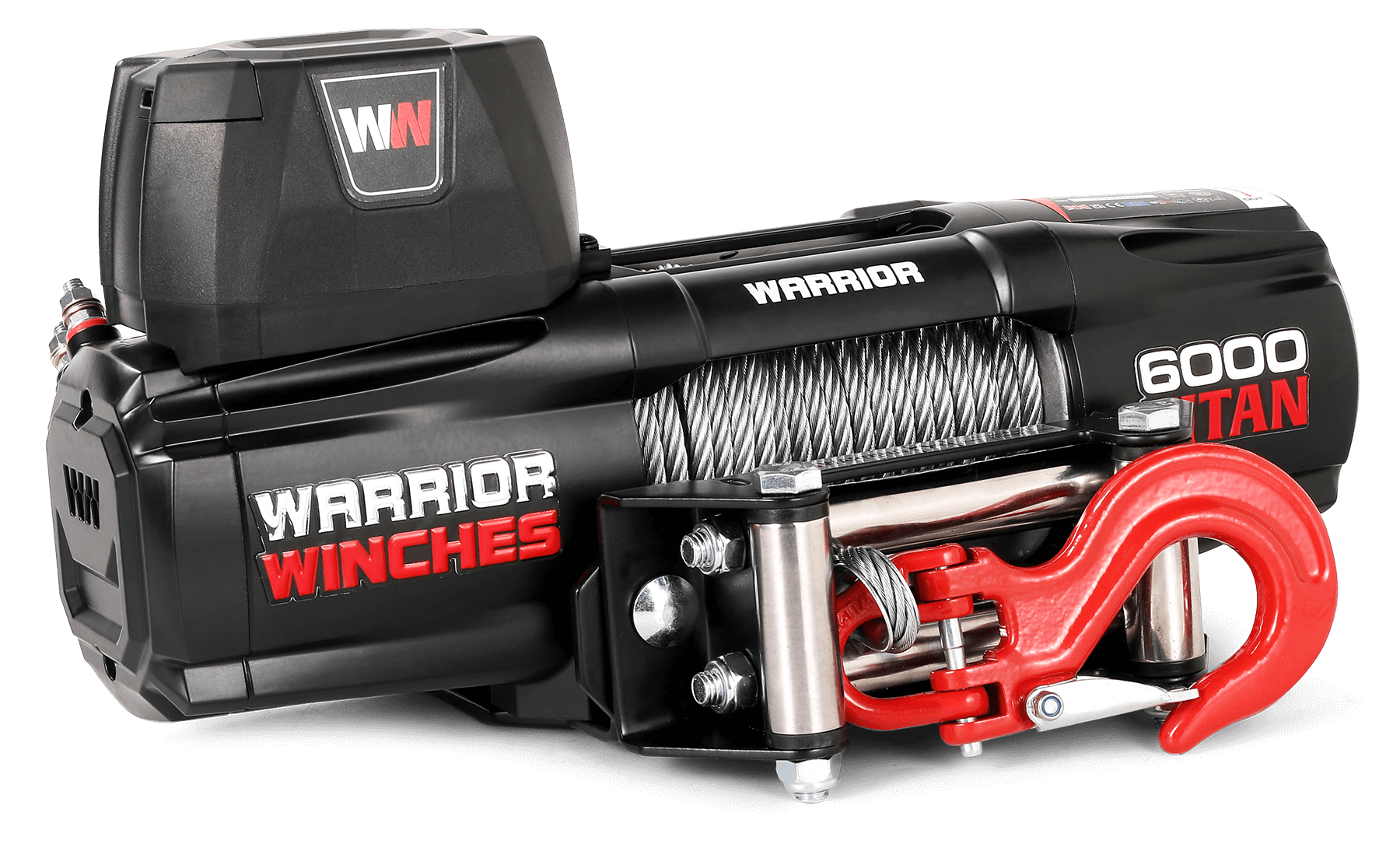

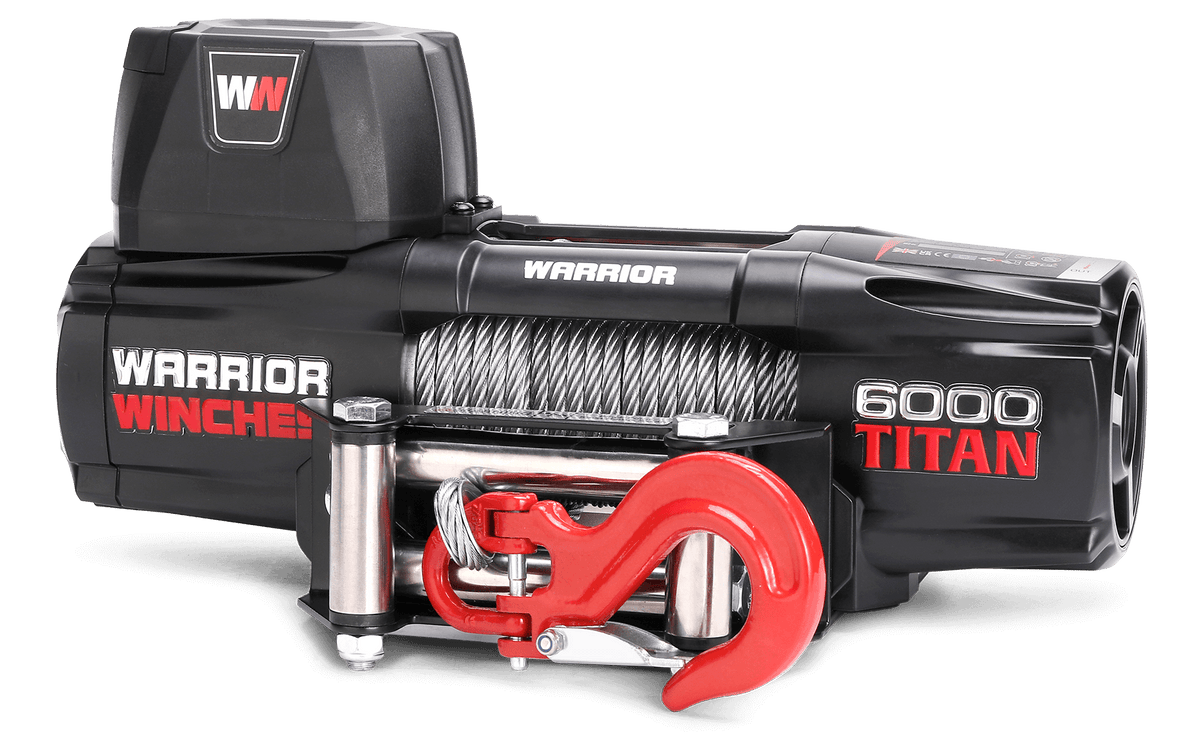

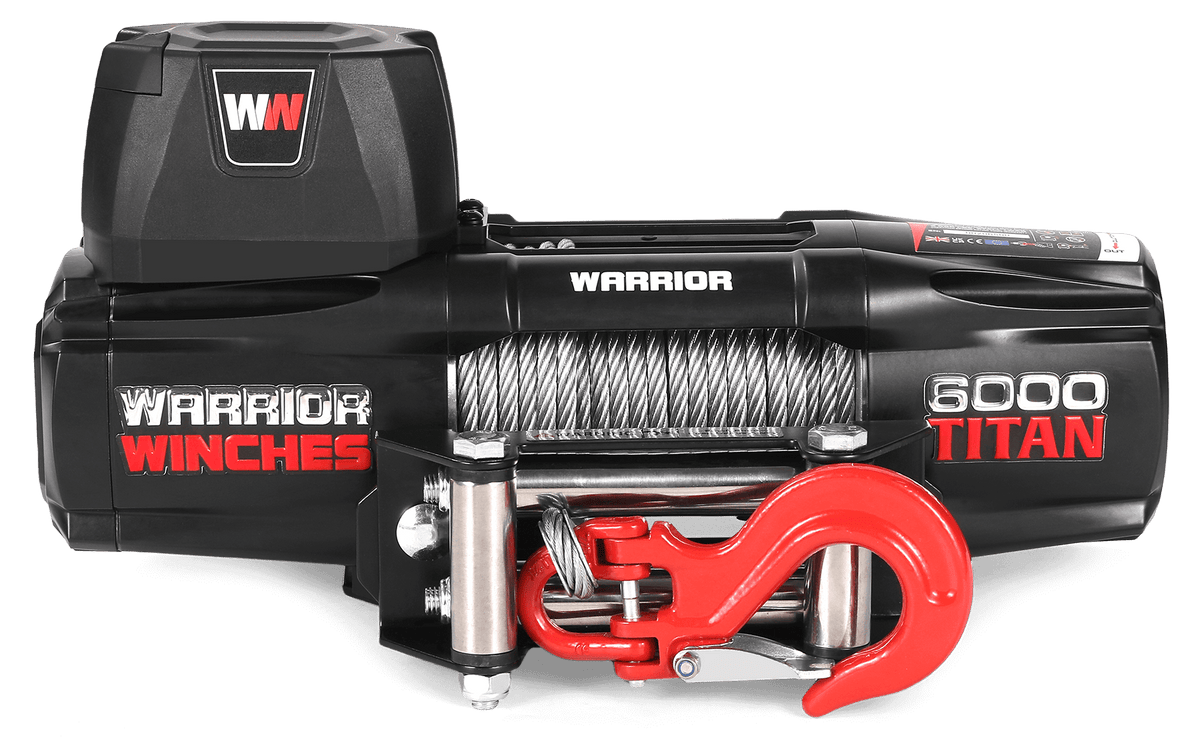

Titan 6000lb Electric Winch - 24v Steel Rope

Warranty: 5 Years

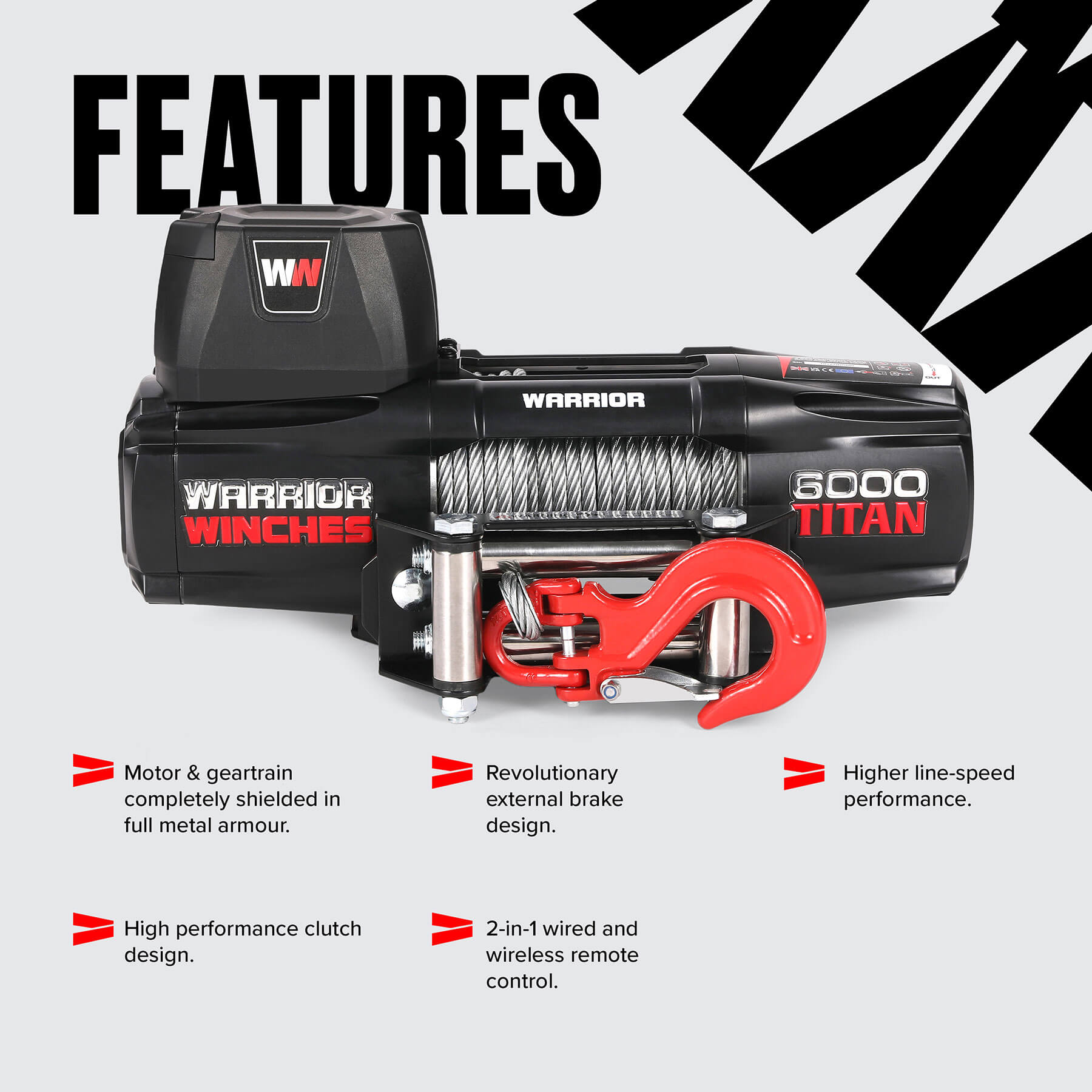

Features

  • Tough Protection from the Outside In - Full metal armour casing helps protect the winch's internal components from impacts, dust and harsh weather, helping it stand up to regular off-road use.
  • Move More. Wait Less - Fast line performance helps shorten recovery times, getting heavy vehicles and loads moving sooner when the pressure is on.
  • Controlled Stopping Power - The mechanical spring brake helps maintain control of the load, providing dependable holding power when recovering on steep or uneven ground.
  • Steel Rope Built to Work - The 6.5mm steel rope is designed for demanding recovery applications, with a roller fairlead helping maintain smooth rope movement during operation.
  • Stay in Command - The 2-in-1 wired and wireless remote gives you the flexibility to control the winch from the cab or from a better vantage point. USB recharging means you can keep the remote ready for the next recovery.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Titan Range are our premium grade Quad, Side-by-side and trailer winches built to deliver fast, quiet, and smooth recovery solutions for those that demand the best of the best.

The Titan 6000lb 24V electric winch delivers serious recovery capability in a compact package, combining a powerful 24V motor with durable planetary gearing and a robust steel rope setup. With a rated line pull of 6,000lb (2,722kg), it is well suited to demanding recoveries, trailer applications and heavy-duty recreational use where dependable performance and control matter.

Premium power when you need it. The 2.7kW 24V motor delivers up to 6,000lb (2,722kg) of rated line pull through a 202:1 planetary gearing system. The 24V electrical system also provides a lower current draw than the equivalent 12V version, helping make it a practical choice for vehicles and applications already equipped with a 24V electrical system.

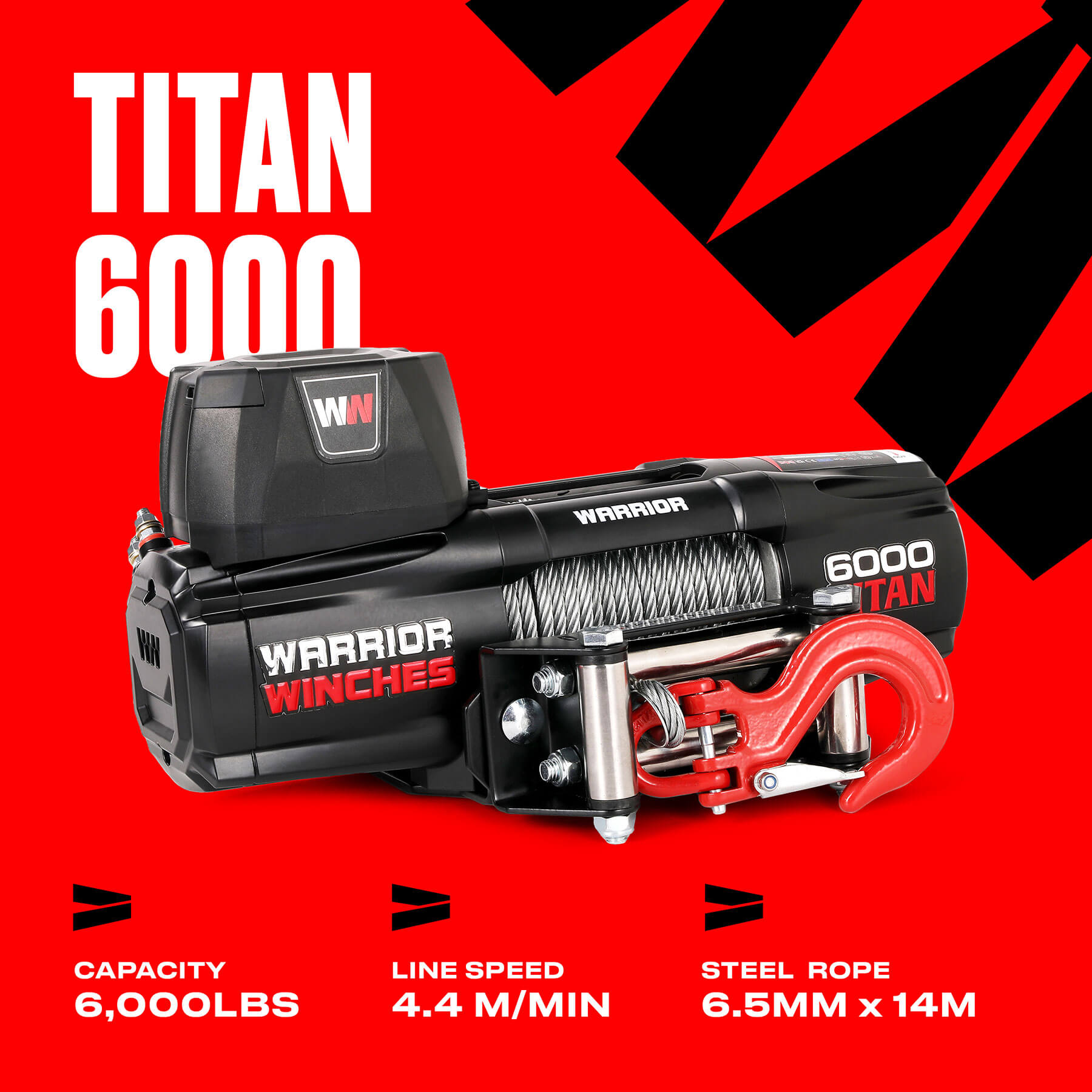

Less waiting, more recovery. With a no-load line speed of up to 4.4m/min and a speed of 1.5m/min at the full 6,000lb load, the Titan 6000 gets to work efficiently when you need to recover a vehicle or move a heavy load. The manual clutch allows you to quickly engage or disengage the drum, making rope deployment straightforward.

Built for demanding recoveries. The 14m x 6.5mm steel rope provides the durability needed for regular recovery work, while the heavy-duty roller fairlead helps guide the rope smoothly onto and off the drum. A mechanical spring brake provides controlled stopping power, helping you maintain control when recovering on slopes or managing heavy loads.

Reliable protection for harsh conditions. The full metal armour casing helps protect the winch's internal components from impacts, dust and harsh weather, while the IP67 rating provides additional protection against water and dust ingress. This makes the Titan 6000 well suited to the demanding conditions encountered during off-road recovery and outdoor use.

Hands on control from anywhere. The 2-in-1 rechargeable wired and wireless remote gives you the flexibility to operate the winch from the vehicle or from a more suitable position away from it. Being able to move away from the vehicle gives you a better view of the recovery and lets you manage the winch from where you have the best control of the situation.

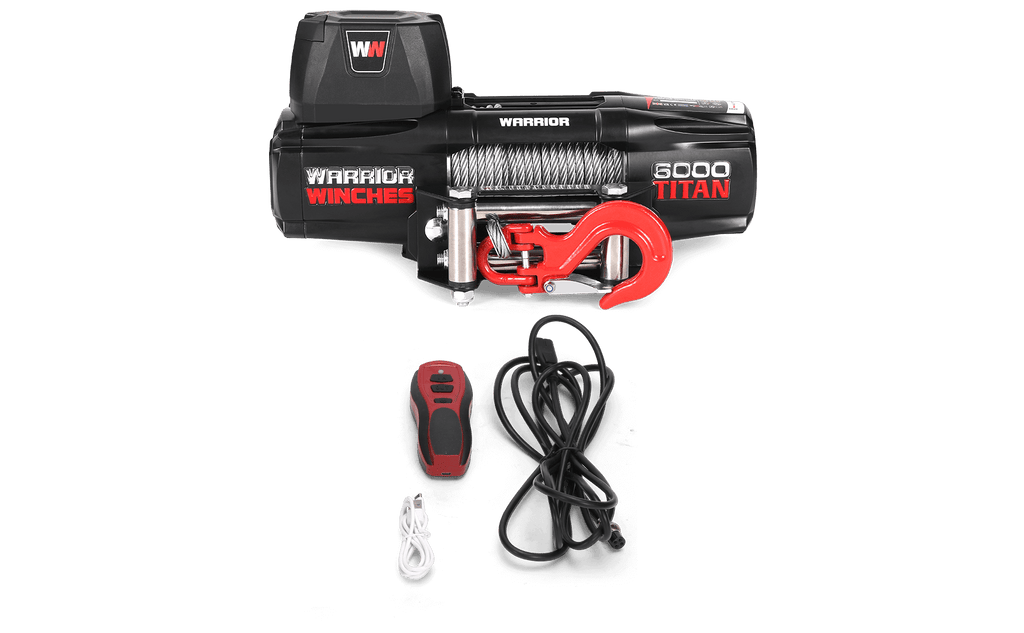

Premium performance. Compact footprint. Measuring just 393 x 127 x 195mm and weighing 16.3kg, the Titan 6000 offers substantial pulling power without taking up unnecessary space. Supplied with the winch, steel rope, roller fairlead, mounting plate, rechargeable wired/wireless remote and heavy-duty battery cables, it provides everything needed to integrate the winch into your recovery setup.

Backed by a 5-year warranty, the Titan 6000lb 24V electric winch combines premium construction, dependable pulling power and smooth, controlled operation for demanding recovery applications.

Sku60TTSU24
EAN5056789802002
Rated Line Pull6000 lbs
Motor Type24V: Input: 3.6hp / 2.7kW; Output: 1.7hp / 1.3kW
Rated Volt24
ClutchManual
Gearing202:1
Gearing SystemPlanetary
Braking ActionMechanical Spring
Drum Size (Diameter x Length)50.0 x 138.0 mm
Controls2in1 Rechargeable Wired/Wireless Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 6.5 mm x 14.0 m
FairleadRoller
Mounting Pattern168mm × 76.2mm mm
Dimensions393 x 127 x 195 mm
Weight16.3 kg
Warranty5 Year
Waterproof Rating (IP)67
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Total Rope on Drum ft (m)
1 6000(2722)  10.8(3.3)
2 4877(2212)   24.6(7.5)
3 4109(1864) 40.7(12.4)
4 3549(1610) 45.9(14)
Line Pull Line Speed ft/min (m/min) Amp Draw
lbs (kgs) 12v
24v 12v 24v
0 13.8 (4.2) 14.4 (4.4) 22 12
2500 (1134) 7.8 (2.4) 8.5 (2.6) 95 50
4500 (2041) 6.6 (2.0) 7.5 (2.3) 170 85
6000 (2722) 3.3 (1.0) 4.9 (1.5) 220 110
  • Titan Winch
  • Rope and Hook
  • Fairlead
  • Mounting Plate
  • Rechargeable Wired/Wireless Remote
  • Heavy Duty Battery Cables
User Manual Download
Specifications Sheet  Download

Warrior Winches 5 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
