110VSH800WRC

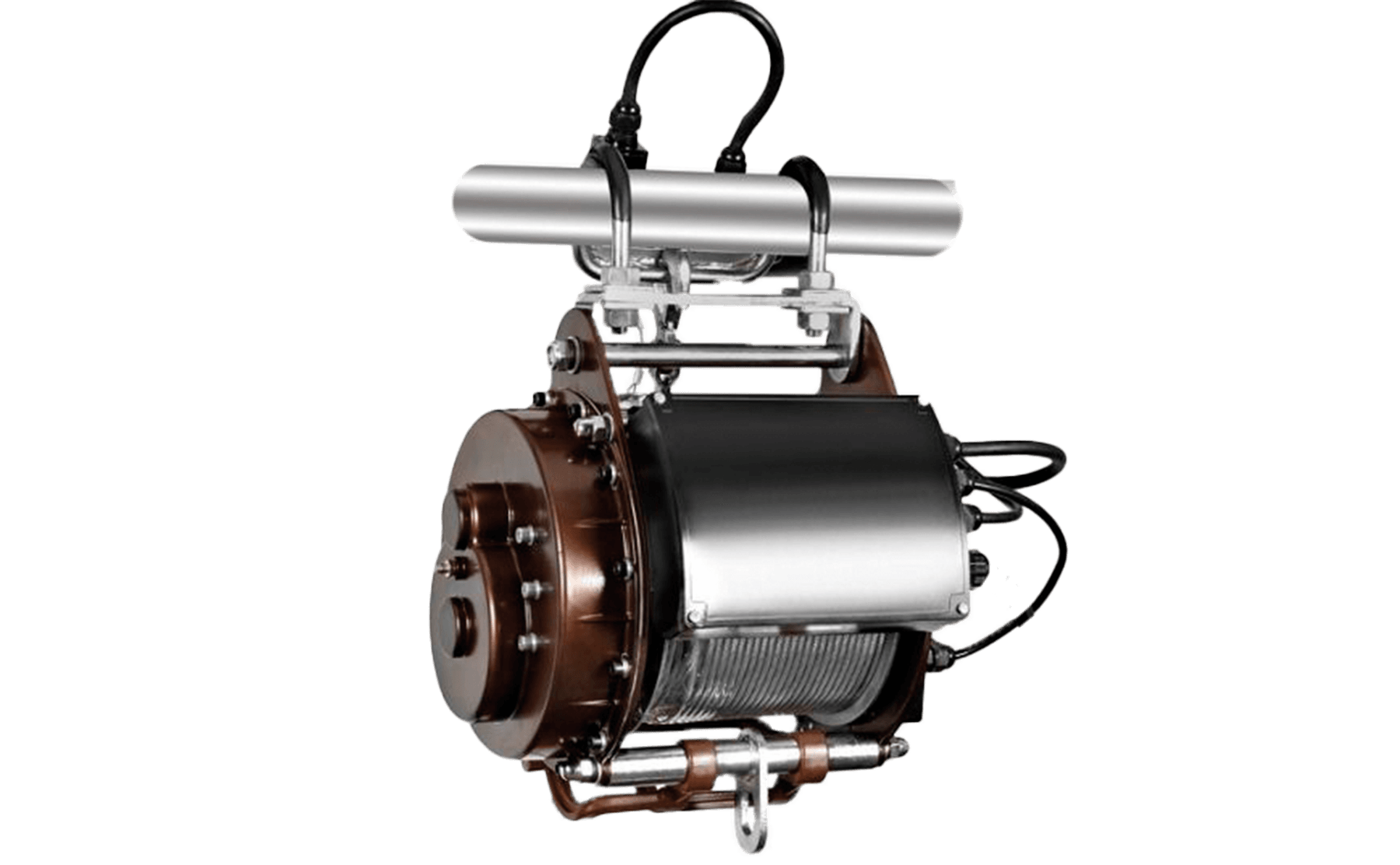

Warrior 800kg Scaffold Hoist - 110v Wireless Remote

Warranty: 12 Months

Features

  • A Secure Fit for Suitable Scaffold Setups - Suspension-style mounting and a secure protection hook help provide a practical installation arrangement for lifting heavier materials.
  • Keep the Steel Rope Better Organised - The automatic winding mechanism helps maintain neater rope alignment on the drum, supporting smoother handling from one lift to the next.
  • Simplify Rope Replacement Work - The rope can be changed without disassembling the hoist, helping make maintenance more convenient and less time-consuming.
  • Smooth Rotation for Dependable Use - An integrated bearing system helps the cable drum rotate smoothly, supporting consistent mechanical operation over time.
  • Safety-Conscious Design - Key elements of BS EN 14492-1 and BS EN 14492-2 are reflected in the design, together with built-in safety features to support controlled lifting.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

The Warrior 800kg 110V Scaffold Hoist with Wireless Remote combines substantial lifting capacity with the freedom to operate from a more suitable position. Powered by a 1300W motor, it can raise loads of up to 800kg using 32 metres of 5.6mm steel rope, making it the dependable choice for scaffold-based lifting where a compatible 110V supply is required.

Lift Loads of Up to 800kg. With a maximum lifting capacity of 800kg, this hoist provides the pulling strength needed to move heavier materials. The 1300W motor supplies the power behind each lift, helping you move substantial loads.

Choose a Compatible 110V Power Supply. Designed for 110V operation, this version offers an alternative to standard 240V-powered hoists where a suitable 110V supply is preferred or required.

Operate from a More Convenient Position. The wireless remote allows you to control lifting movements without remaining tethered to the hoist. This gives you more freedom to choose a position with a clearer view of the load, helping you monitor its movement and coordinate each lift with greater flexibility.

Reach Elevated Working Areas with 32m of Steel Rope. Supplied with 32 metres of 5.6mm steel rope, the hoist provides the reach needed for lifting materials to higher positions. Its single-line lifting speed reaches up to 8m/min, while double-line operation provides a speed of up to 4m/min.

Maintain Orderly Rope Movement. The automatic rope winding system helps distribute the steel cable neatly around the drum during operation. This reduces the need for manual rope management and helps keep the cable arranged ready for the next lift.

Replace the Rope Without Dismantling the Hoist. The easy-change cable design makes future rope replacement more straightforward. Rather than taking the hoist apart, the cable can be changed without dismantling the unit, helping simplify routine maintenance.

Keep Drum Rotation Running Smoothly. A bearing-supported drum helps reduce friction as the rope moves during lifting and lowering. This supports consistent drum rotation and contributes to smoother operation throughout the lifting cycle.

Built-In Features for Controlled Lifting. Upper and lower limit switches help prevent travel beyond the intended operating range, while the dynamic braking system helps control the load when movement stops. Thermal overload protection also helps protect the motor against excessive heat during operation.

Ready for Challenging Working Conditions. The IP65-rated enclosure helps protect the hoist against dust ingress and water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku110VSH800WRC
EAN5060423980155
Rated Line Pull1763 lbs
Rated Volt110
Max Load800
Lift Height 32.0 m
32.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1300
Cable MaterialSteel
Cable Size (Diameter x Length) 5.6 mm x 32.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight37.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Wireless Remote
User Manual Download

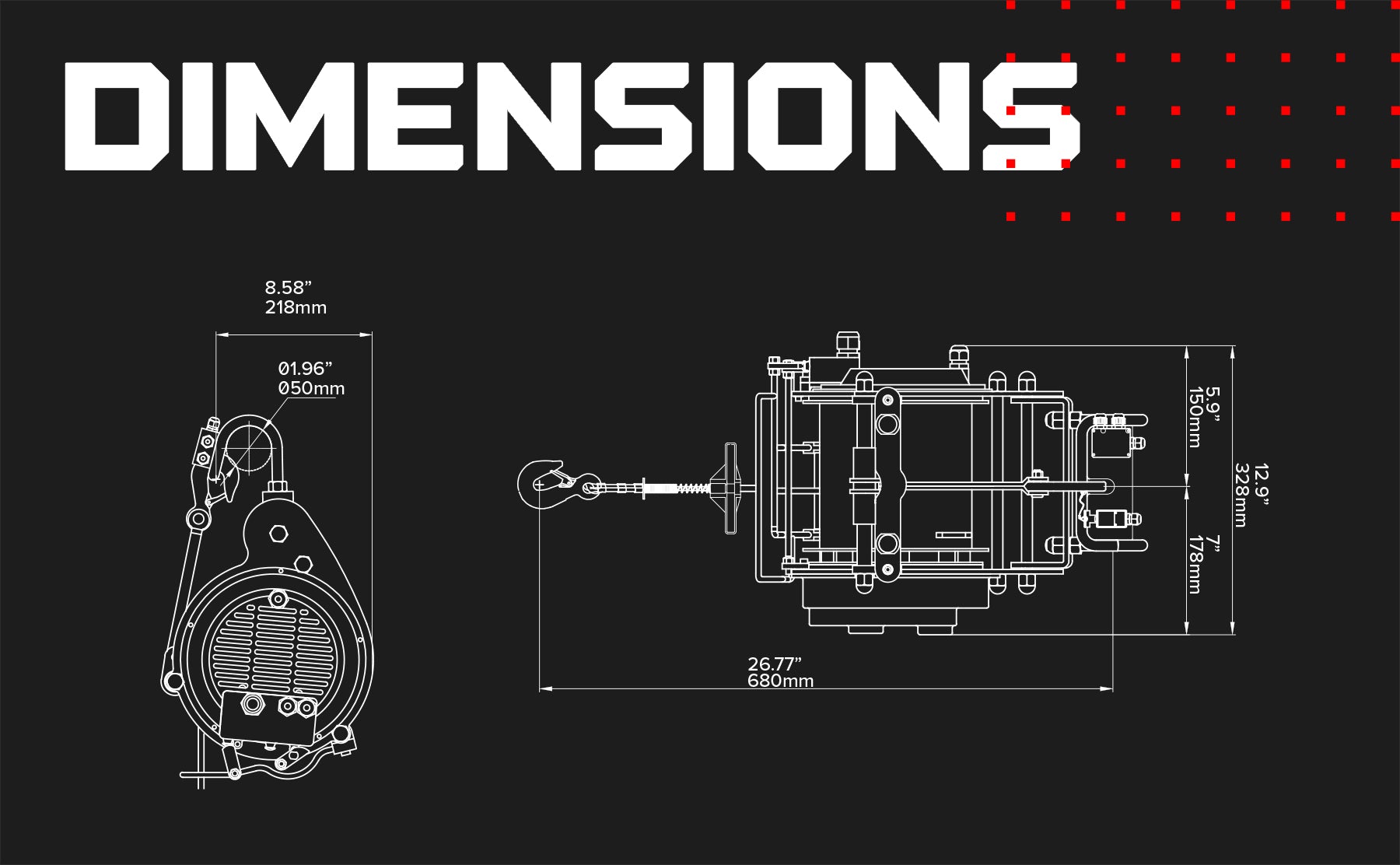

Technical Drawing Download

1 rok gwarancji

Winch Solutions jest wyłącznym dystrybutorem WARRIOR WINCHES.

Winch Solutions („sprzedawca” lub rozwiązania w zakresie wciągarek) gwarantuje wyłącznie pierwotnemu nabywcy detalicznemu („Kupujący”), że jakikolwiek element mechaniczny oryginalnej WCIĄGARKI WARRIOR („produkt”) jest wolny od wad materiałowych i wykonawczych przez 1 rok od wciągarki .

Komponenty elektryczne (w tym silnik, stycznik i przełączniki) będą wolne od wad materiałowych i wykonawczych przez okres (1) jednego roku (12 miesięcy) od możliwej do udowodnienia daty zakupu pierwotnego zakupu.

Każdy produkt, który Winch Solutions uzna za wadliwy, zostanie naprawiony lub wymieniony według wyłącznego uznania Winch Solutions bez opłat dla Kupującego, pod warunkiem przestrzegania przez Kupującego tej procedury. Sprzedawca lub jego autoryzowany przedstawiciel może pobierać uzasadnione opłaty za części i robociznę w przypadku napraw nieobjętych niniejszą ograniczoną gwarancją wieczystą. Gwarancje określone w niniejszym dokumencie są wyłączne i zastępują wszelkie inne gwarancje, ustne lub pisemne, wyraźne lub dorozumiane.

Wszystkie zakupy muszą być zarejestrowane.

Aby uzyskać usługę w ramach niniejszej gwarancji, Kupujący powinien wysłać pocztą, wysłać lub w inny sposób dostarczyć na adres podany poniżej, na koszt Kupującego; (1) Produkt, (2) pisemny opis problemu, (3) imię i nazwisko, adres i numer kontaktowy Kupującego, (4) kopię oryginalnego dowodu zakupu.

Gwarancja nie obejmuje kosztów robocizny ani kosztów transportu/wysyłki związanych z wymianą lub montażem wadliwych części.

Niniejsza gwarancja nie obejmuje wad Produktu spowodowanych przez; (1) normalnego zużycia, (2) nieprzestrzegania instrukcji instalacji lub konserwacji dostarczonych przez Sprzedawcę, w tym między innymi narażania produktu na obciążenia przekraczające obciążenia wymienione w instrukcjach, Instrukcji obsługi lub na stronie internetowej Sprzedawcy, (3) wykorzystanie komercyjne lub przemysłowe, (4) zmiana lub modyfikacja dokonana przez osoby inne niż Sprzedawca, (5) niewłaściwe użycie, nadużycie, zaniedbanie, wypadki, działanie siły wyższej, terroryzm lub (6) inne przyczyny niezależne od kontroli Sprzedawcy po dostarczeniu Produktu Upoważnionemu agentowi Sprzedawcy.

Niniejsza gwarancja nie obejmuje kabli, lin syntetycznych, prowadnic ani wykończeń zewnętrznych

Firma Winch Solutions nie ponosi odpowiedzialności za jakiekolwiek szkody pośrednie lub wtórne. Te wtórne szkody mogą obejmować między innymi utratę zysków lub utratę możliwości użytkowania i przestoje.

Winch Solution zastrzega sobie prawo do zmiany projektu produktu bez powiadomienia. Winch Solutions zastrzega sobie prawo do wymiany dowolnej części lub całego urządzenia na nowszy projekt o tej samej funkcji.
