110VSH500

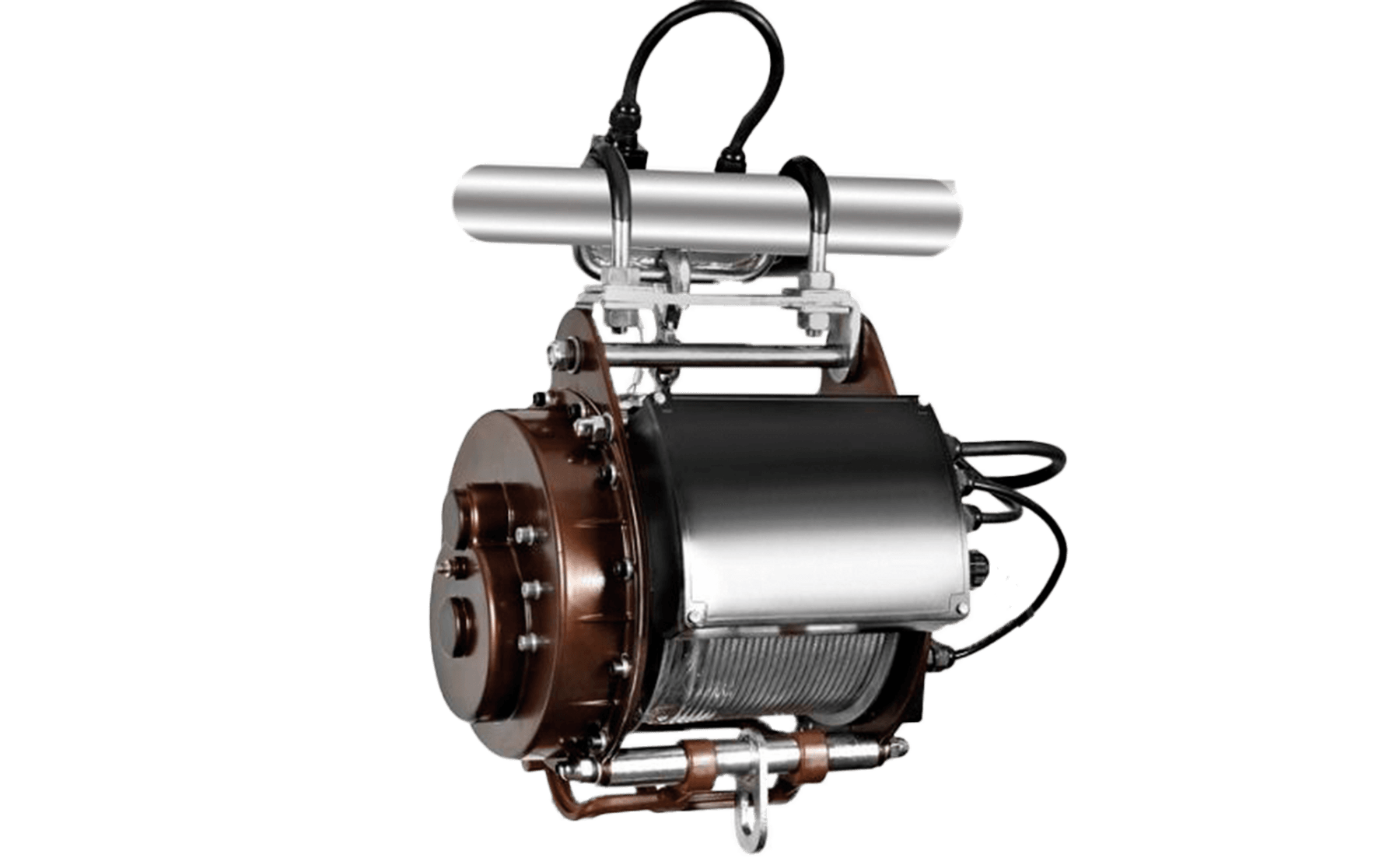

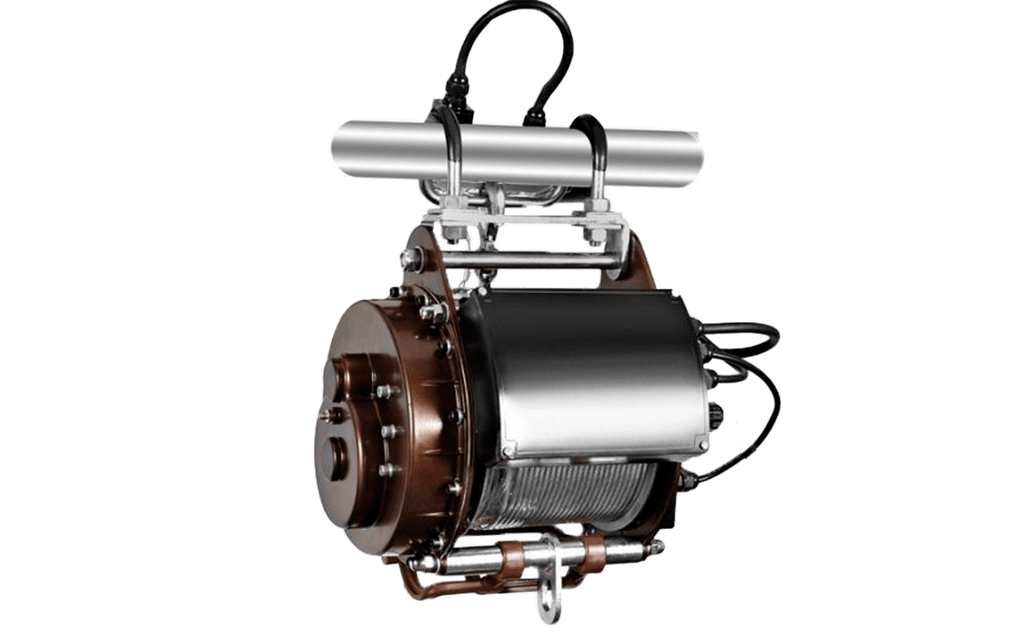

Warrior 500kg Scaffold Hoist - 110v Pendant Remote

Warranty: 12 Months

Features

  • A Secure Starting Point for Installation - The suspension mounting system and protection hook help provide a practical mounting arrangement for suitable scaffold applications.
  • Make Rope Handling More Manageable - An automatic winding system helps return the steel rope to the drum in an organised way, reducing the need to deal with poorly wound rope.
  • Simplify Essential Maintenance - The rope can be replaced without taking the hoist apart, helping make replacement more straightforward when required.
  • Support Smooth, Steady Drum Rotation - The bearing system helps the cable drum turn smoothly, supporting reliable performance and reducing unnecessary strain on moving components.
  • Safety Designed into Everyday Operation - The hoist is designed around key elements of BS EN 14492-1 and BS EN 14492-2, with additional safety features to help support controlled use.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

The Warrior 500kg 110V Scaffold Hoist provides a practical powered lifting option for suitable installations requiring a 110V electrical supply. Combining a 1000W motor with a 38-metre steel rope, it offers the capacity and reach to comfortably move material up to 500kg in weight. Its straightforward pendant controls and carefully considered rope management features make it a convenient addition to a compatible scaffold arrangement.

Put 500kg of Lifting Capacity to Work. With a maximum lifting capacity of 500kg, this hoist gives you the power to raise suitable materials and equipment with less physical effort. The 1000W motor delivers lifting speeds of up to 8 metres per minute using a single line, reducing to 4 metres per minute when configured for double-line lifting.

Choose a 110V Power Configuration. Designed to operate from a 110V supply, this model offers an alternative to the 240V version when a compatible lower-voltage electrical setup is required. Its 1000W motor provides the power needed for its rated lifting capacity while keeping the electrical configuration specific to your installation requirements.

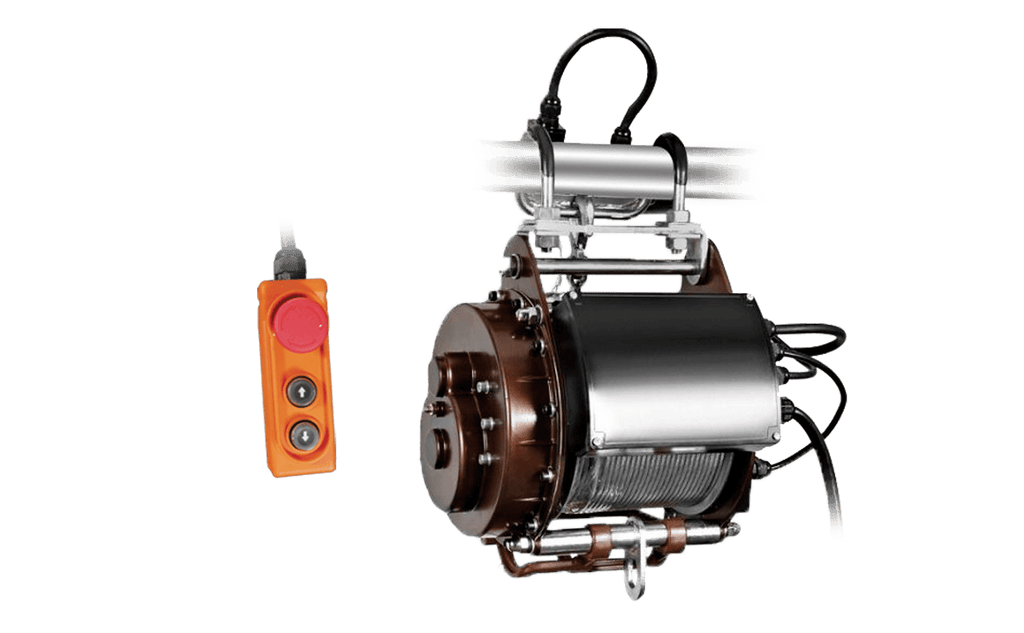

Keep Lifting Commands Close at Hand. The included wired pendant remote provides direct control over raising and lowering, making it easy to manage the movement of materials from a convenient operating position. Its simple control arrangement keeps operation straightforward without the need for a separate wireless handset.

Make Use of 38 Metres of Steel Rope. The supplied 4.2mm steel rope provides an extended lifting length for reaching elevated positions. Whether moving suitable materials or equipment, the generous cable length gives you greater flexibility when planning the hoist's position within a compatible scaffold setup.

Reduce Rope Handling Between Lifts. The automatic winding mechanism helps guide the steel rope back onto the drum in an orderly manner. By helping prevent uneven cable build-up, it reduces the likelihood of tangles and helps keep the rope organised for subsequent lifting cycles.

Simplify Future Cable Changes. Replacing the steel rope does not require the entire hoist to be dismantled. The easy-change cable design makes this maintenance task more convenient, helping reduce unnecessary effort when the rope eventually needs replacing.

Give the Drum a Smoother Ride. The bearing-supported drum is designed to rotate with reduced friction, helping maintain smooth cable movement during operation. This arrangement also helps limit wear on the rotating components, supporting the long-term durability of the lifting mechanism.

Keep Travel Within the Intended Range. Upper and lower limit switches help control the hoist's travel, reducing the risk of it continuing beyond its designated endpoints. A dynamic braking system assists with stopping, while thermal overload protection helps prevent excessive motor heat during operation.

Added Protection Against Dust and Water. With an IP65 protection rating, the hoist is designed to resist dust ingress and water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku110VSH500
EAN5060423980216
Rated Line Pull1102 lbs
Rated Volt110
Max Load500
Lift Height 38.0 m
38.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1000
Cable MaterialSteel
Cable Size (Diameter x Length) 4.2 mm x 38.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight36.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Pendant Remote
User Manual Download

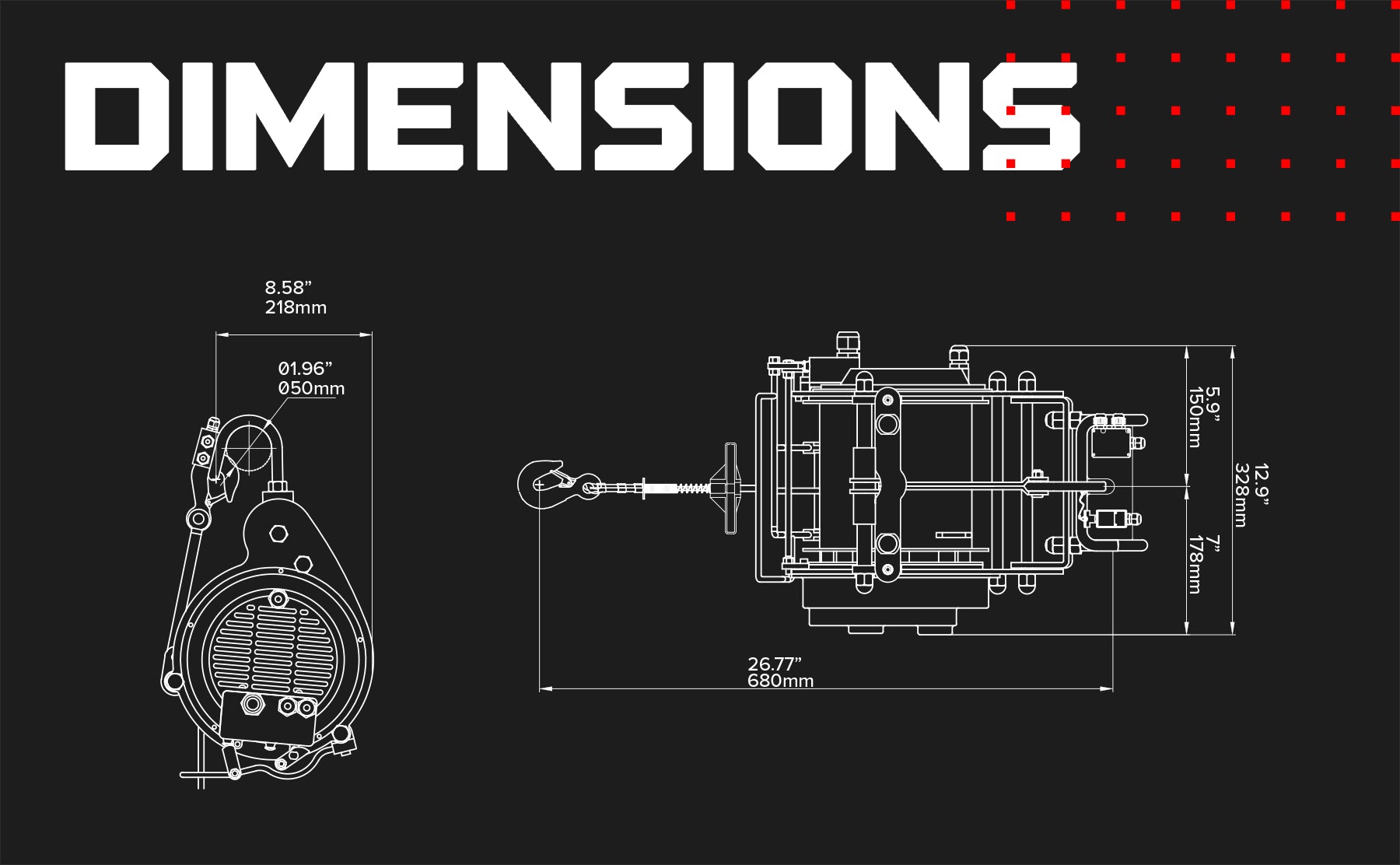

Technical Drawing Download
