110VSH500WRC

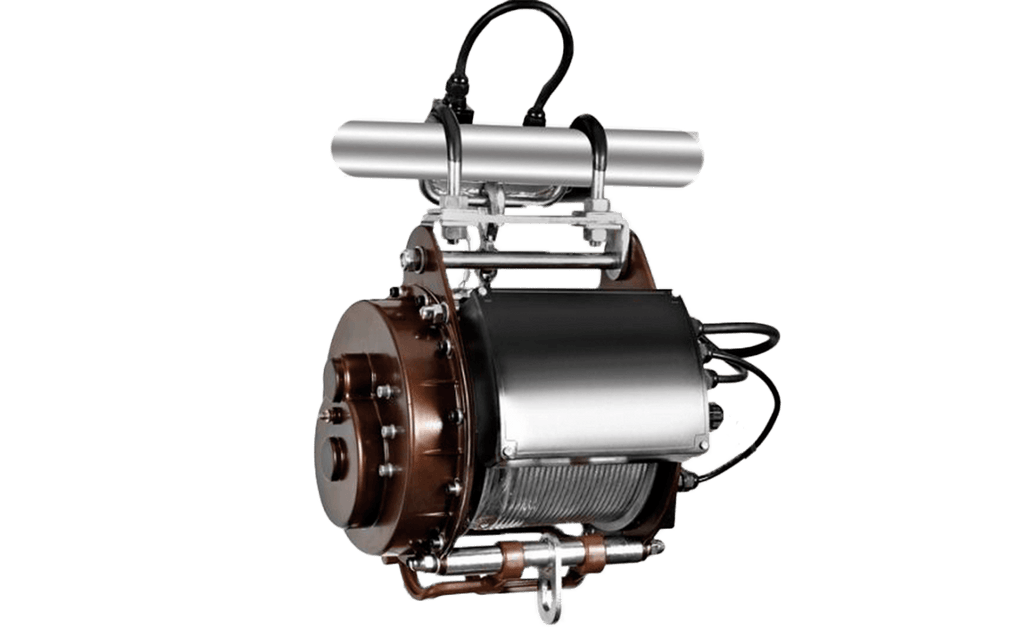

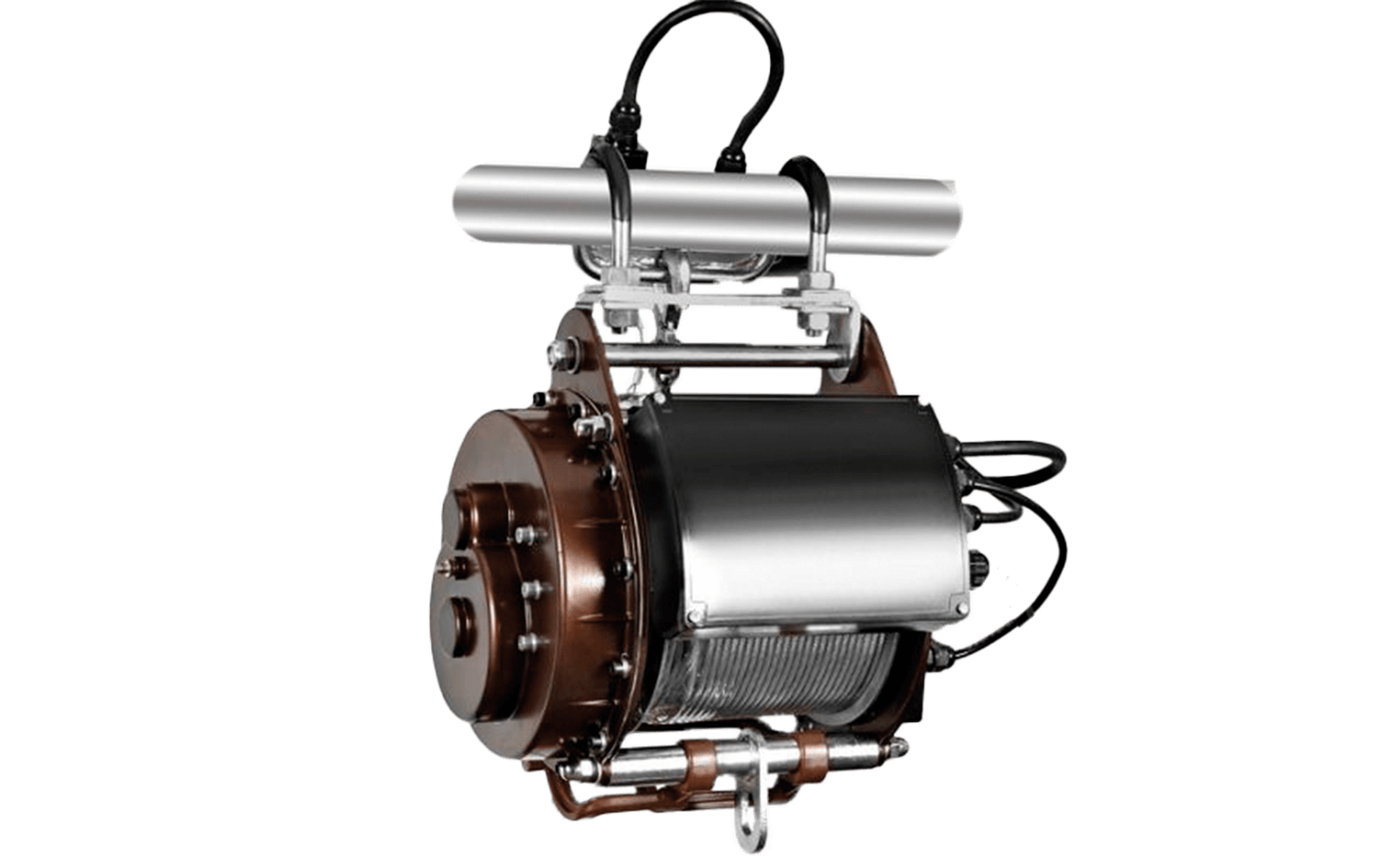

Warrior 500kg Scaffold Hoist - 110v Wireless Remote

Warranty: 12 Months

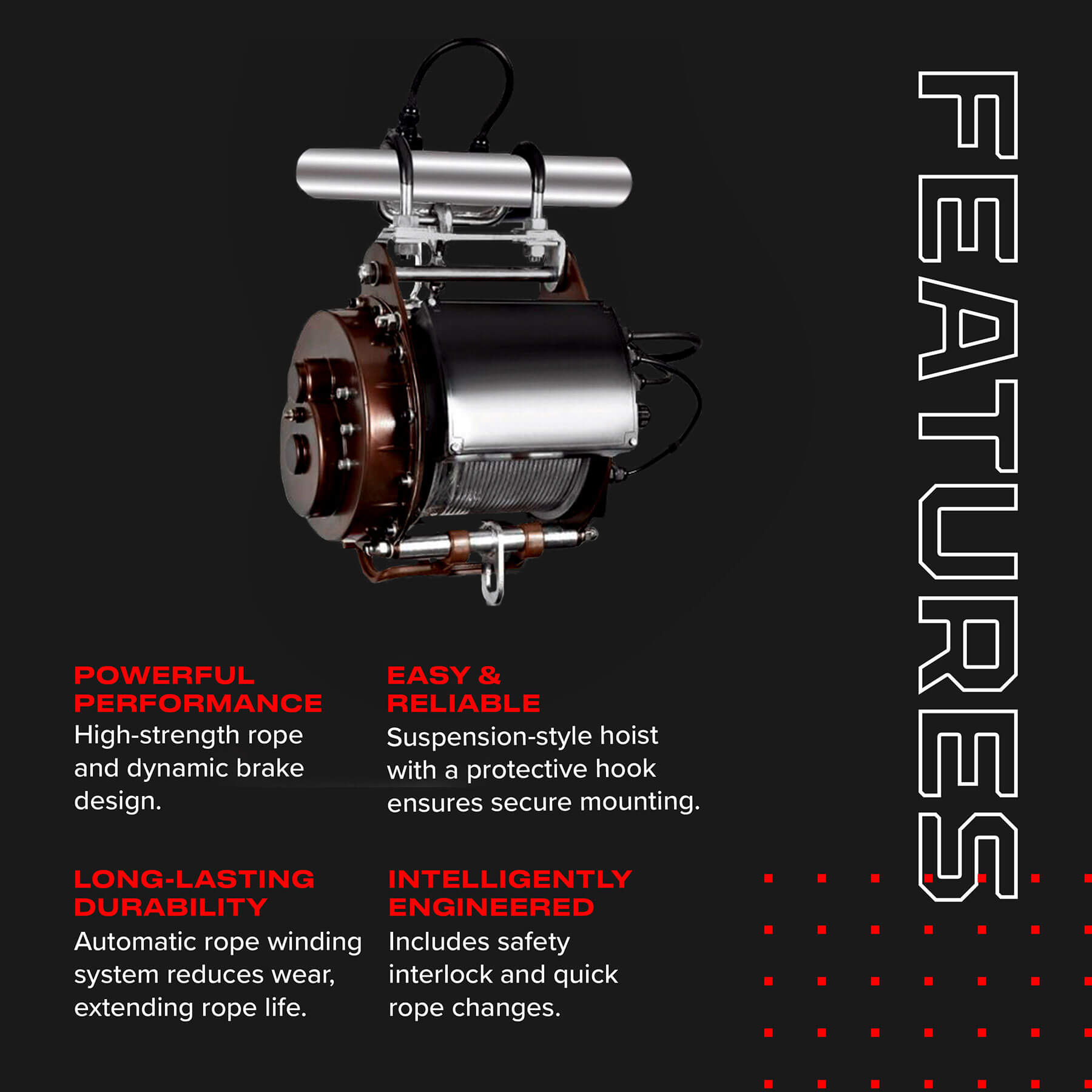

Features

  • Mount with Confidence - The suspension-style mounting arrangement and secure protection hook make installation a breeze on a suitable scaffold structure.
  • Less Rope Clutter During Operation - An automatic winding system helps keep the steel rope neatly arranged on the drum, supporting tidier handling throughout the lifting process.
  • A More Convenient Rope Change - The hoist allows rope replacement without full disassembly, helping reduce the work involved in this maintenance task.
  • Designed for Smooth Drum Movement - Bearing-supported rotation helps the cable drum move freely during lifting, supporting consistent operation when properly maintained.
  • Recognised Safety Principles - The design incorporates key elements of BS EN 14492-1 and BS EN 14492-2, complemented by integrated features to help manage lifting movement.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

The Warrior 500kg 110V Scaffold Hoist with Wireless Remote offers a flexible powered lifting solution for suitable scaffold installations using a compatible 110V supply. Its 1000W motor provides the strength to raise loads of up to 500kg, while the wireless control system allows you to easily manage the hoist from a distance.

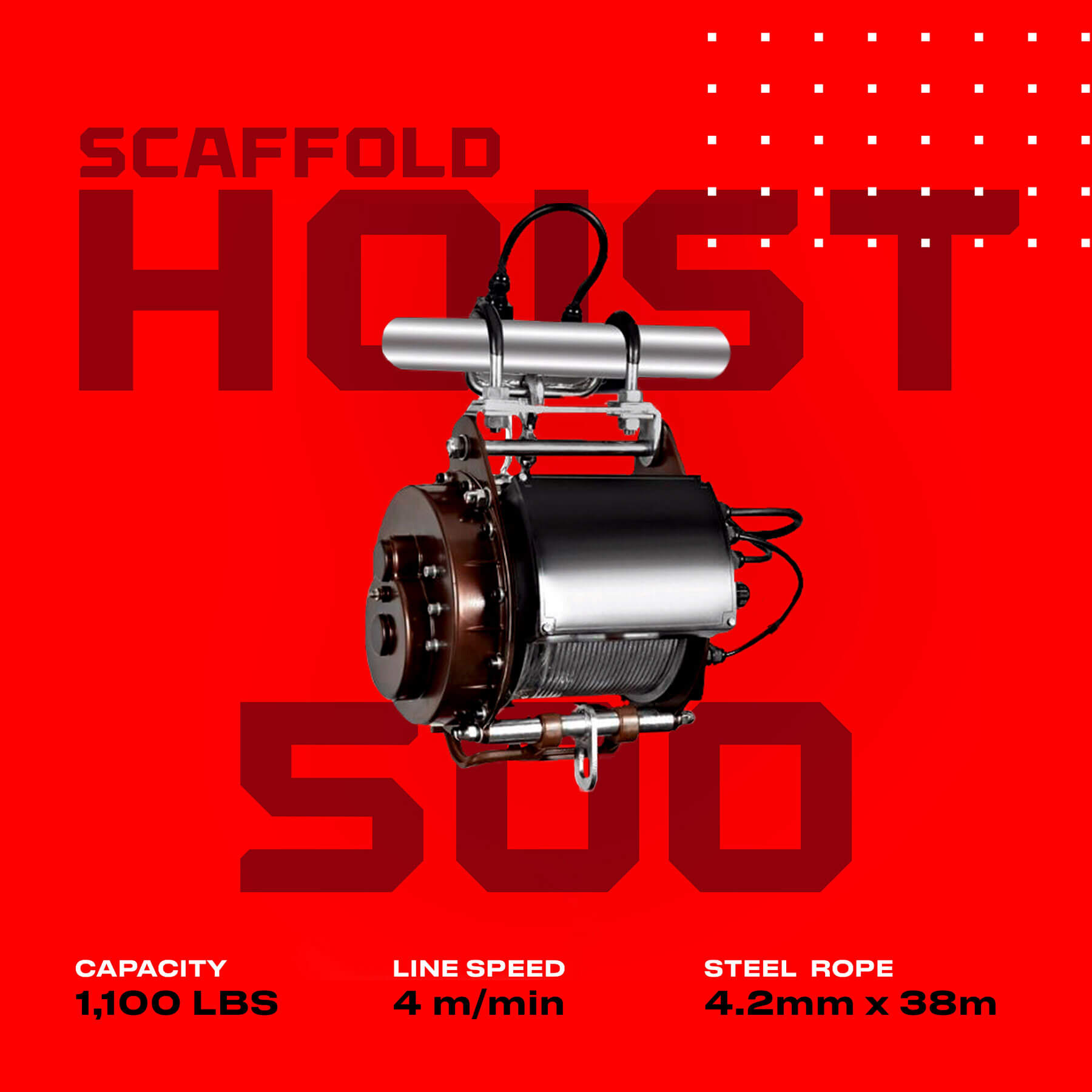

Bring 500kg of Lifting Power to Your Setup. The 1000W motor provides a maximum lifting capacity of 500kg. It operates at speeds of up to 8 metres per minute with single-line lifting, or 4 metres per minute when using the double-line configuration.

Work with a Compatible 110V Supply. This version is designed for installations requiring 110V power, offering an alternative to the 240V model without changing the hoist's 500kg capacity. The motor provides the power needed for the specified lifting performance while allowing you to choose the electrical configuration that suits your setup.

Enjoy Freedom from a Tethered Remote. The wireless handset lets you raise and lower loads without being restricted by a control cable. You can move to a more convenient position around the lifting area, helping you maintain a clearer view of the load and its movement throughout the lift.

Reach Elevated Positions with 38m of Rope. The supplied 4.2mm steel cable provides a generous length for lifting materials to higher working positions. This extended reach gives you greater choice when positioning the hoist and planning a suitable scaffold installation.

Keep the Rope Properly Arranged on the Drum. The automatic winding mechanism helps distribute the steel rope as it returns to the drum, reducing the chance of uneven accumulation and tangling. This helps keep the cable organised and ready for the next lifting operation.

Make Cable Replacement More Convenient. The easy-change rope design allows the steel cable to be replaced without dismantling the complete hoist. This makes an important maintenance task less involved and helps simplify ongoing equipment upkeep.

Support Smooth Movement Through the Lifting Cycle. A bearing-supported drum helps maintain smooth rotation as the rope is deployed and retracted. Reducing friction around this moving component helps limit wear and supports consistent mechanical operation.

Help Prevent Excessive Travel and Motor Heat. Upper and lower limit switches help keep the hoist within its intended travel range, while the dynamic brake assists with controlled stopping. Thermal overload protection adds another layer of motor protection by helping guard against excessive heat build-up.

Designed for Protection in Suitable Environments. The IP65 rating helps protect the hoist against dust ingress and water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku110VSH500WRC
EAN5060423980131
Rated Line Pull1102 lbs
Rated Volt110
Max Load500
Lift Height 38.0 m
38.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1000
Cable MaterialSteel
Cable Size (Diameter x Length) 4.2 mm x 38.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight36.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Wireless Remote
User Manual Download

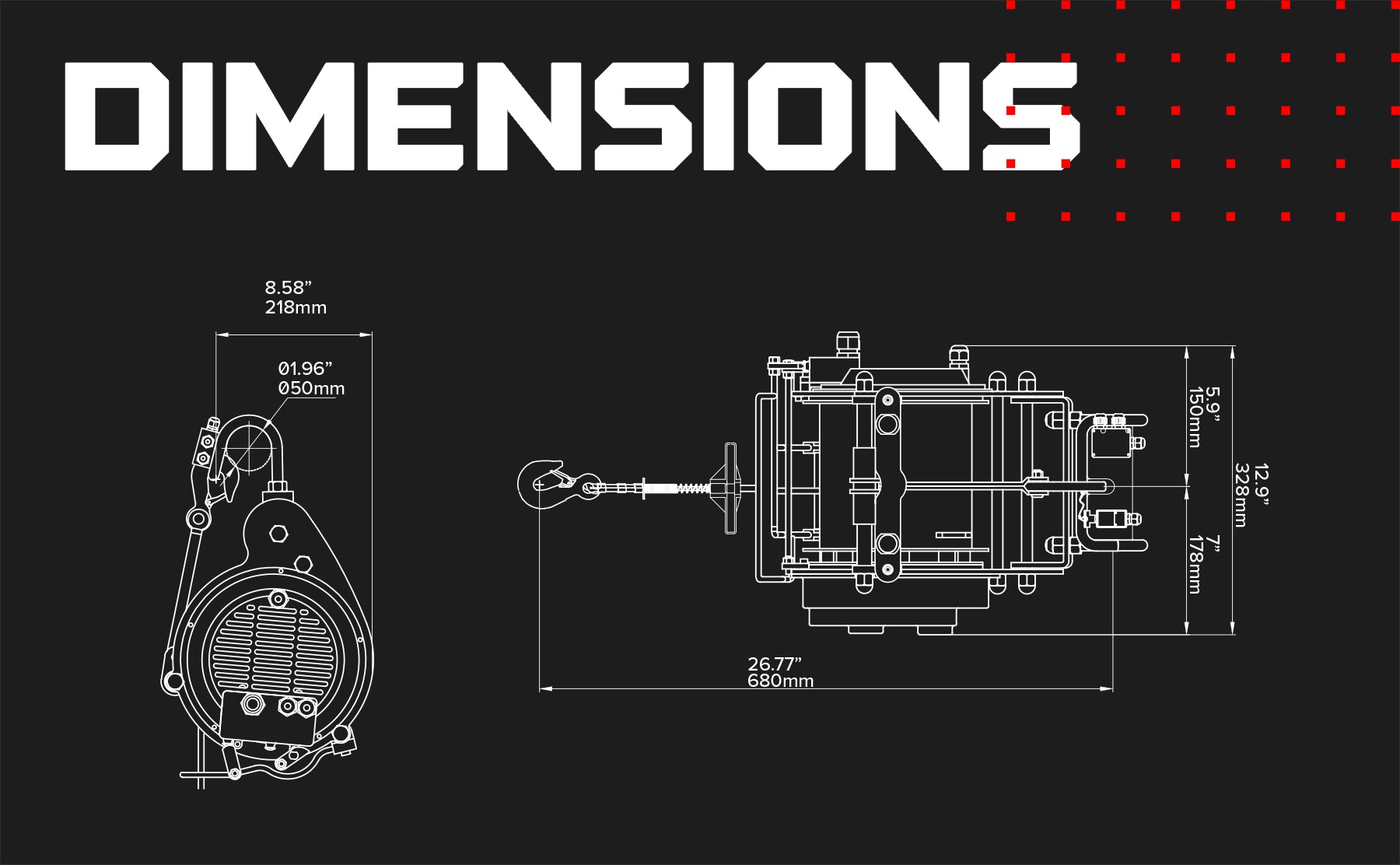

Technical Drawing Download

1 rok gwarancji

Winch Solutions jest wyłącznym dystrybutorem WARRIOR WINCHES.

Winch Solutions („sprzedawca” lub rozwiązania w zakresie wciągarek) gwarantuje wyłącznie pierwotnemu nabywcy detalicznemu („Kupujący”), że jakikolwiek element mechaniczny oryginalnej WCIĄGARKI WARRIOR („produkt”) jest wolny od wad materiałowych i wykonawczych przez 1 rok od wciągarki .

Komponenty elektryczne (w tym silnik, stycznik i przełączniki) będą wolne od wad materiałowych i wykonawczych przez okres (1) jednego roku (12 miesięcy) od możliwej do udowodnienia daty zakupu pierwotnego zakupu.

Każdy produkt, który Winch Solutions uzna za wadliwy, zostanie naprawiony lub wymieniony według wyłącznego uznania Winch Solutions bez opłat dla Kupującego, pod warunkiem przestrzegania przez Kupującego tej procedury. Sprzedawca lub jego autoryzowany przedstawiciel może pobierać uzasadnione opłaty za części i robociznę w przypadku napraw nieobjętych niniejszą ograniczoną gwarancją wieczystą. Gwarancje określone w niniejszym dokumencie są wyłączne i zastępują wszelkie inne gwarancje, ustne lub pisemne, wyraźne lub dorozumiane.

Wszystkie zakupy muszą być zarejestrowane.

Aby uzyskać usługę w ramach niniejszej gwarancji, Kupujący powinien wysłać pocztą, wysłać lub w inny sposób dostarczyć na adres podany poniżej, na koszt Kupującego; (1) Produkt, (2) pisemny opis problemu, (3) imię i nazwisko, adres i numer kontaktowy Kupującego, (4) kopię oryginalnego dowodu zakupu.

Gwarancja nie obejmuje kosztów robocizny ani kosztów transportu/wysyłki związanych z wymianą lub montażem wadliwych części.

Niniejsza gwarancja nie obejmuje wad Produktu spowodowanych przez; (1) normalnego zużycia, (2) nieprzestrzegania instrukcji instalacji lub konserwacji dostarczonych przez Sprzedawcę, w tym między innymi narażania produktu na obciążenia przekraczające obciążenia wymienione w instrukcjach, Instrukcji obsługi lub na stronie internetowej Sprzedawcy, (3) wykorzystanie komercyjne lub przemysłowe, (4) zmiana lub modyfikacja dokonana przez osoby inne niż Sprzedawca, (5) niewłaściwe użycie, nadużycie, zaniedbanie, wypadki, działanie siły wyższej, terroryzm lub (6) inne przyczyny niezależne od kontroli Sprzedawcy po dostarczeniu Produktu Upoważnionemu agentowi Sprzedawcy.

Niniejsza gwarancja nie obejmuje kabli, lin syntetycznych, prowadnic ani wykończeń zewnętrznych

Firma Winch Solutions nie ponosi odpowiedzialności za jakiekolwiek szkody pośrednie lub wtórne. Te wtórne szkody mogą obejmować między innymi utratę zysków lub utratę możliwości użytkowania i przestoje.

Winch Solution zastrzega sobie prawo do zmiany projektu produktu bez powiadomienia. Winch Solutions zastrzega sobie prawo do wymiany dowolnej części lub całego urządzenia na nowszy projekt o tej samej funkcji.
